1 - Combining plots

Let’s understand what happens when a plot command is executed:

from sympy import *
from spb import *
var("x")

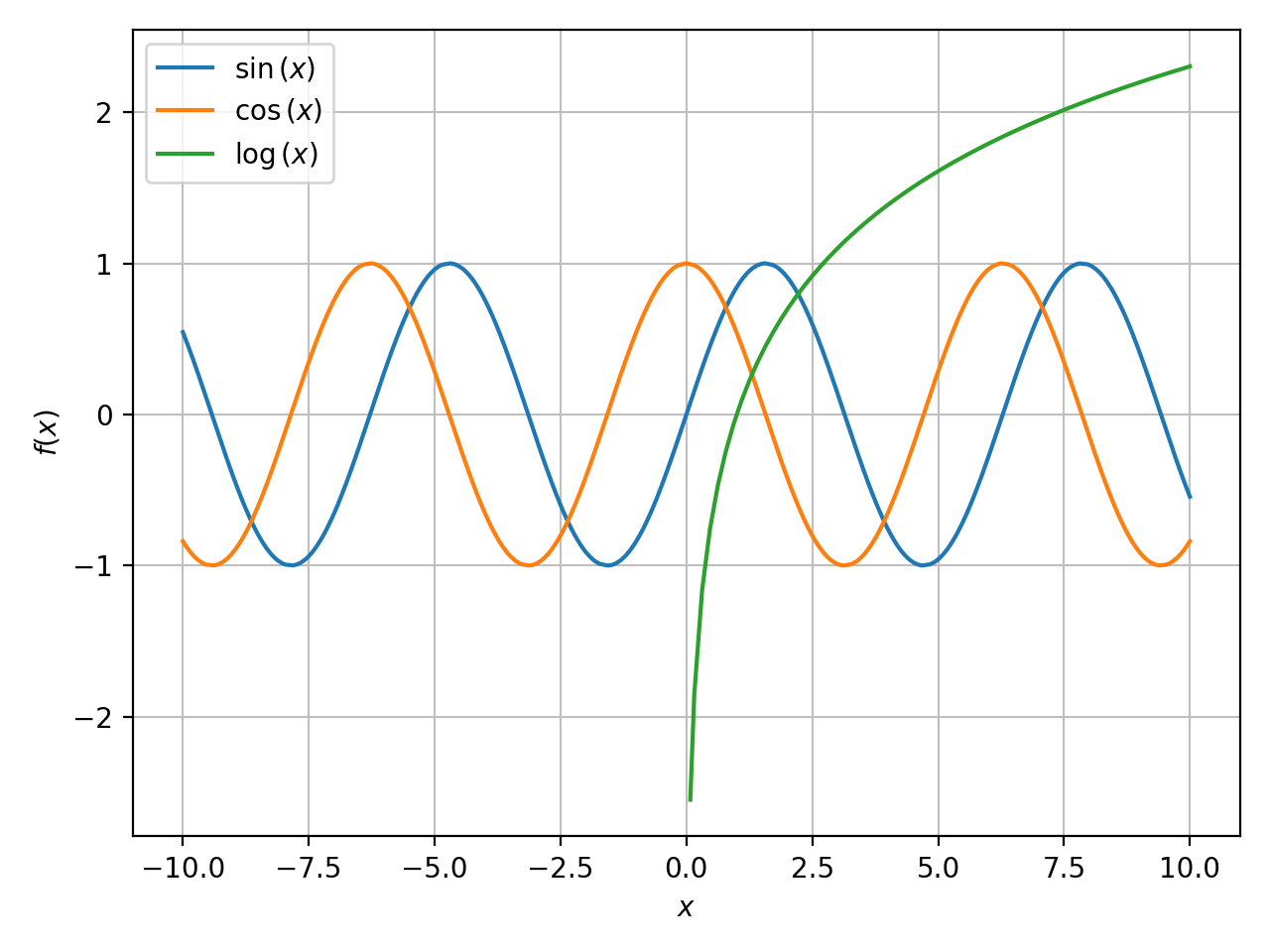

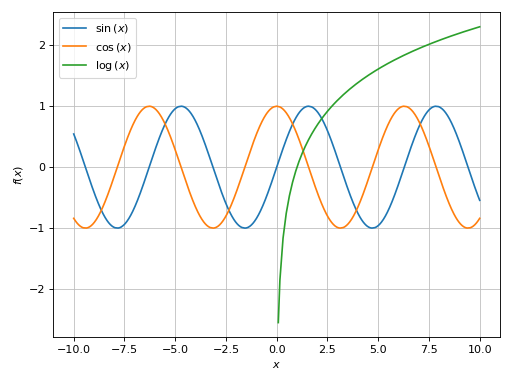

p = plot(sin(x), cos(x), log(x), backend=MB)

(Source code, png, hires.png, pdf)

The plot function is going to loop over the provided arguments: it will create and store one data series for each expression. So, in the previous example p contains 3 data series. Once the data series are created, they will be used by the backend (the wrapper to the plotting library) to generate numerical data.

Effectively, p is a container of data series. We can quickly visualize them by printing the plot object:

>>> print(p)
Plot object containing:
[0]: cartesian line: sin(x) for x over (-10.0, 10.0)
[1]: cartesian line: cos(x) for x over (-10.0, 10.0)
[2]: cartesian line: log(x) for x over (-10.0, 10.0)

(Source code)

We can retrieve a list containing all data series from a plot object by calling the series attribute:

p.series

(Source code)

Alternatively, we can retrieve a single data series by indexing the plot object:

>>> print(p[0])
cartesian line: sin(x) for x over (-10.0, 10.0)

(Source code)

We can combine multiple plots together in three ways:

summing them up: this will create a new plot containing all data series from all initial plots. For example:
```
c = S(2) / 10
p1 = plot(cos(x) * exp(-c * x), (x, 0, 10), "f(x)", title="plot 1")

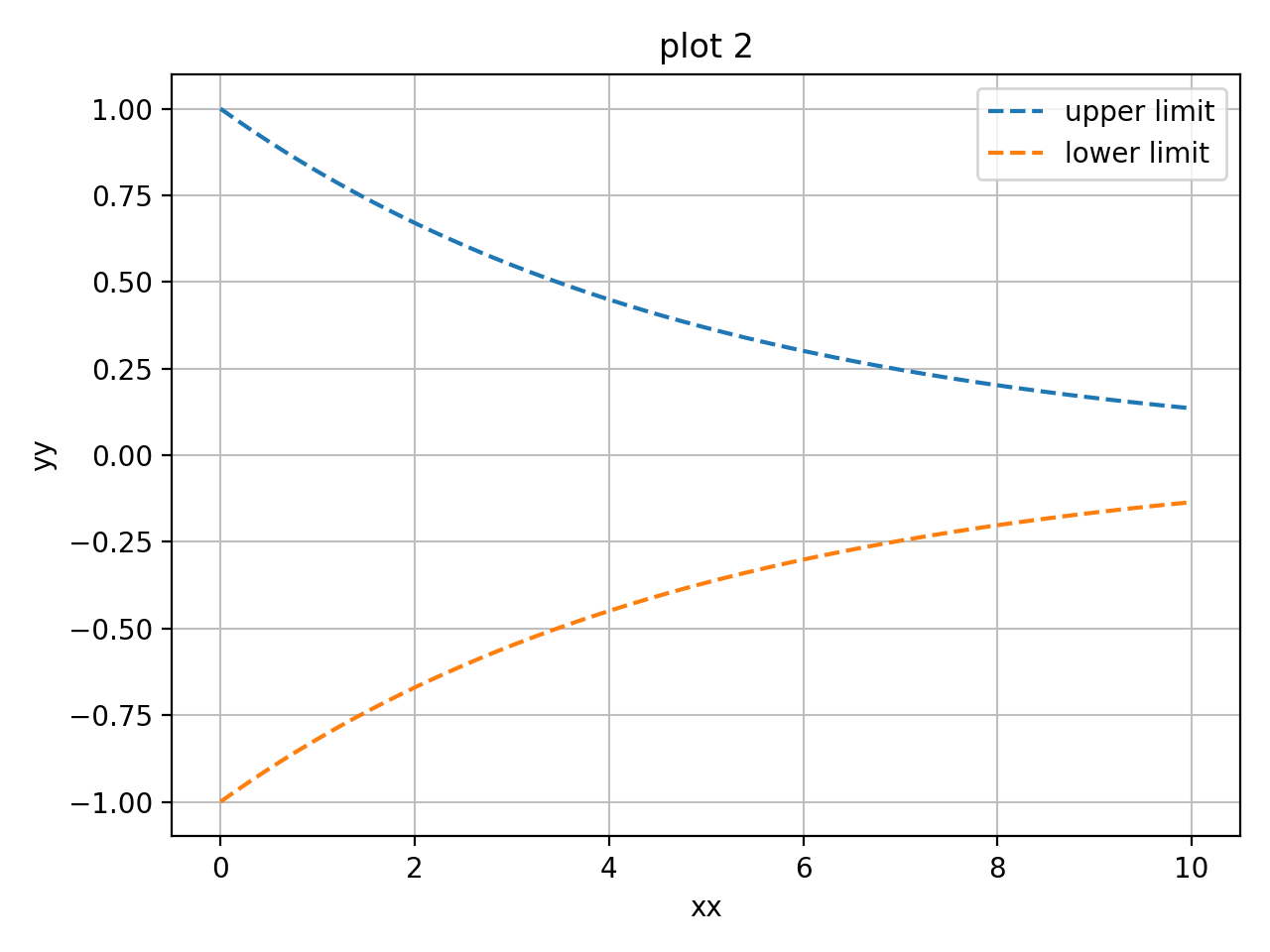

p2 = plot(
    (exp(-c * x), "upper limit"),
    (-exp(-c * x), "lower limit"), (x, 0, 10), {"linestyle": "--"},
    title="plot 2", xlabel="xx", ylabel="yy")
```
(Source code)

(png, hires.png, pdf)

(png, hires.png, pdf)

And then:
```

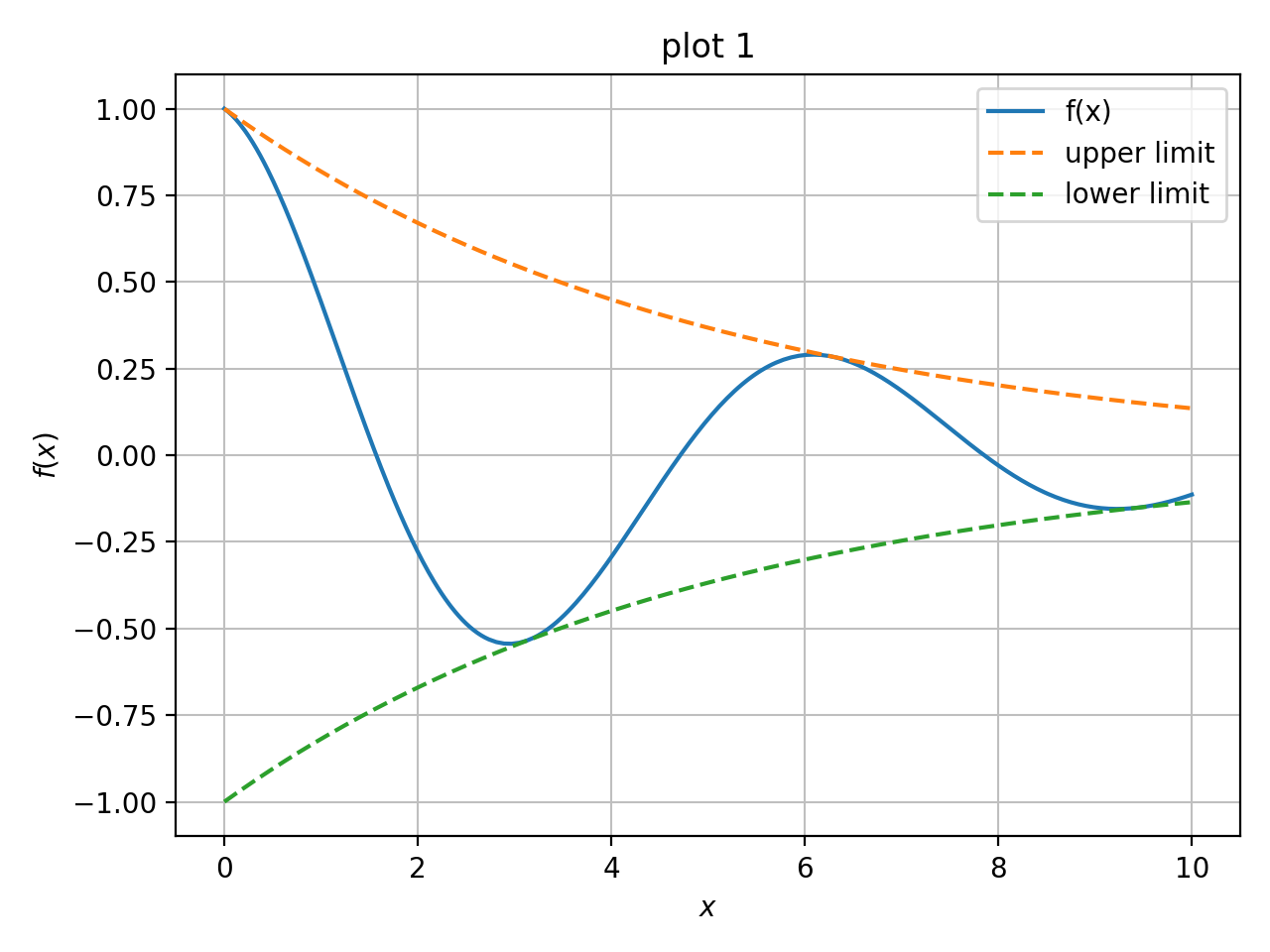

p3 = p1 + p2
p3.show()
# or more quickly: (p1 + p2).show()
```
(Source code, png, hires.png, pdf)

Note that the final plot uses the keyword arguments of the left-most plot in the summation. In the previous example, the resulting plot has the title of p1. Now, let’s sum them up in a different order:
```

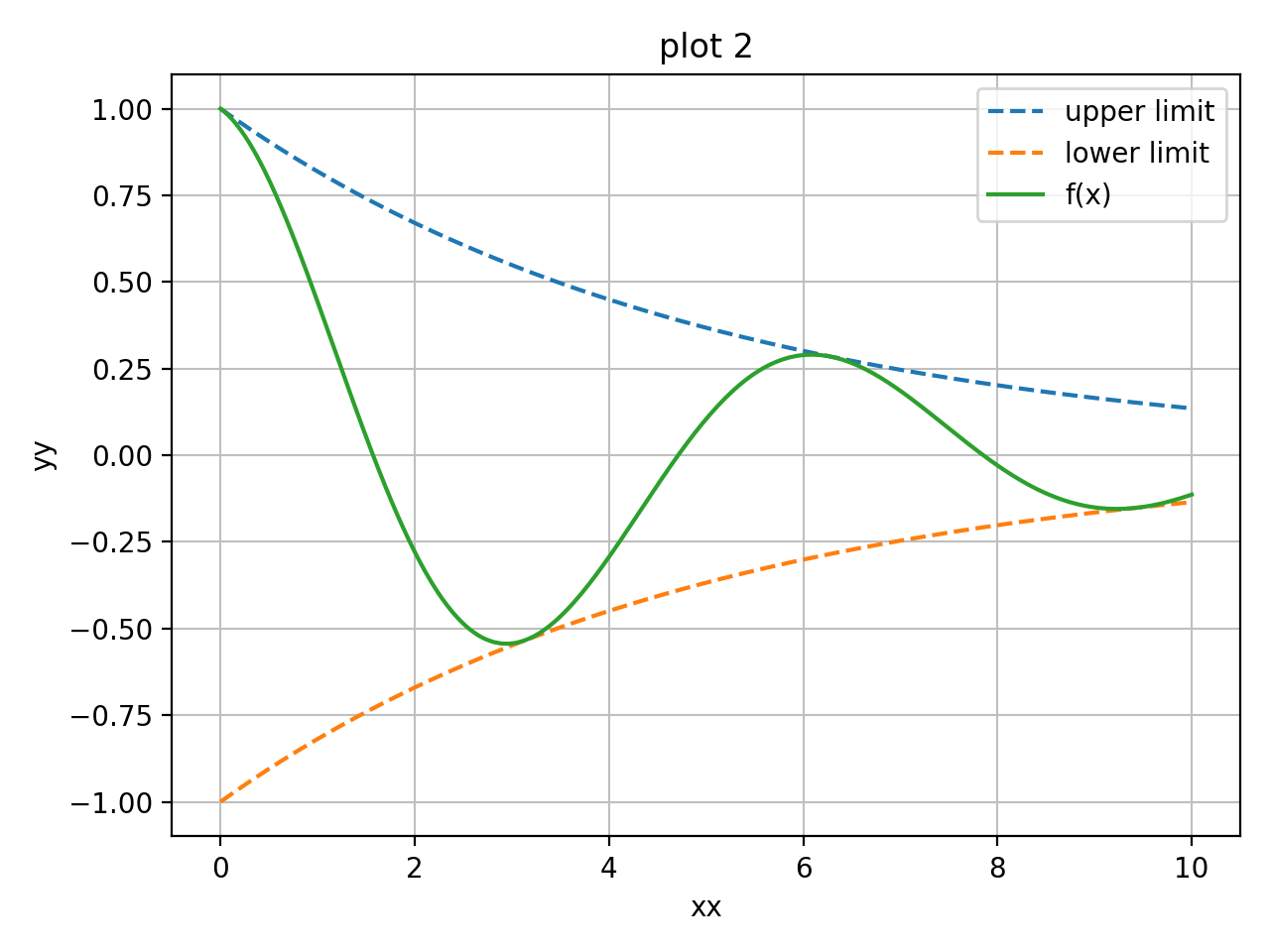

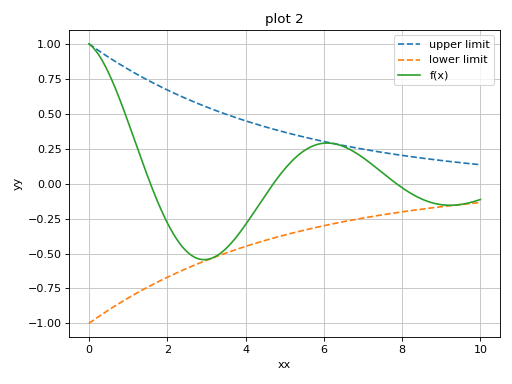

(p2 + p1).show()
```
(Source code, png, hires.png, pdf)

Here, the resulting plot is using the title and axis labels of p2.
We can use the extend method to achieve the same goal as before:
```

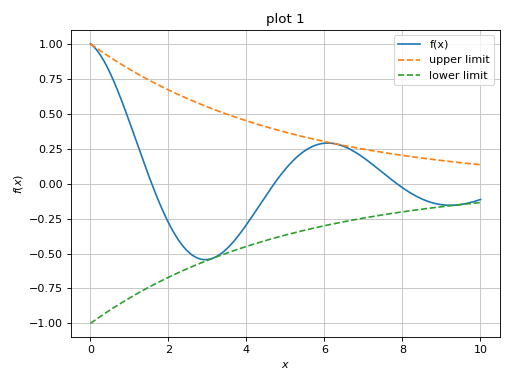

p1.extend(p2)
p1.show()
```
(Source code, png, hires.png, pdf)

using the append method to append one specific data series from one plot object to another. For example:

>>> p1 = plot(cos(x) * exp(-c * x), (x, 0, 10), "f(x)",
...     title="plot 1", show=False)
>>> p2 = plot(
...     (exp(-c * x), "upper limit"),
...     (-exp(-c * x), "lower limit"), (x, 0, 10), {"linestyle": "--"},
...     title="plot 2", xlabel="xx", ylabel="yy", show=False)

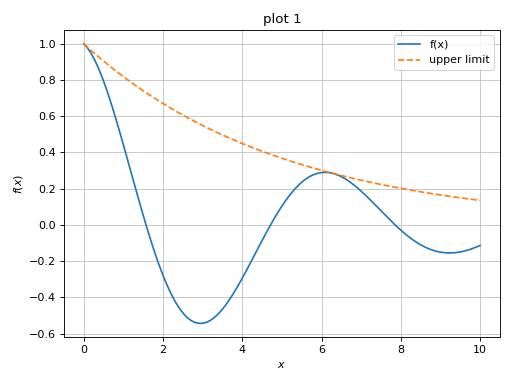

>>> p1.append(p2[0])
>>> print(p1)
Plot object containing:
[0]: cartesian line: exp(-x/5)*cos(x) for x over (0.0, 10.0)
[1]: cartesian line: exp(-x/5) for x over (0.0, 10.0)
>>> p1.show()

(Source code, png, hires.png, pdf)
