Control

This module contains plotting functions for some of the common plots used in control system. It works with transfer functions from SymPy, SciPy and the control module. To achieve this seamlessly user experience, the control module must be installed, which solves some critical issues related to SymPy but also comes with it’s own quirks.

In particular, impulse_response, step_response and ramp_response provide two modes of operation:

  1. control=True (default value): the symbolic transfer function is converted to a transfer function of the control module. The responses are computed with numerical integration.

  2. control=False the responses are computed with the inverse Laplace transform of the symbolic output signal. This step is not trivial: sometimes it works fine, other times it produces wrong results, other times it consumes too much memory, potentially crashing the machine.

These functions exposes the lower_limit=0 keyword argument, which is the lower value of the time axis. If the default value (zero) is used, the responses from the two modes of operation are identical. On the other hand, if the value is different from zero, then results are different, with the second mode of operation being correct. The first mode of operation is wrong because the integration starts with a zero initial condition.

from sympy import *
from spb import *
x = symbols("x")
s = symbols("s")
G = (8*s**2 + 18*s + 32) / (s**3 + 6*s**2 + 14*s + 24)
p1 = graphics(
   step_response(G, upper_limit=10, label="G1 - control", control=True, rendering_kw={"linestyle": "--"}),
   step_response(G, upper_limit=10, label="G1 - sympy", control=False, scatter=True, n=20),
   xlabel="Time [s]", ylabel="Amplitude", xlim=(0, 10), show=False
)
p2 = graphics(
   step_response(G, upper_limit=10, label="G1 - control", control=True, rendering_kw={"linestyle": "--"}, lower_limit=2),
   step_response(G, upper_limit=10, label="G1 - sympy", control=False, scatter=True, n=20, lower_limit=2),
   xlabel="Time [s]", ylabel="Amplitude", xlim=(0, 10), show=False
)
plotgrid(p1, p2)

(Source code, png)

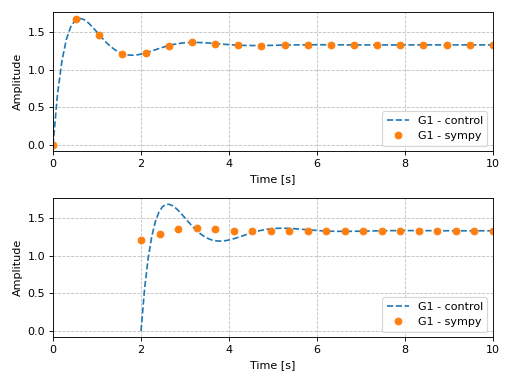

../../_images/control-1.png

The plotting module will warn the user if the first mode of operation is being used with a lower_limit different than zero.

NOTES:

  • All the following examples are generated using Matplotlib. However, Bokeh can be used too, which allows for a better data exploration thanks to useful tooltips. Set backend=BB in the function call to use Bokeh.

  • For technical reasons, all interactive-widgets plots in this documentation are created using Holoviz’s Panel. Often, they will ran just fine with ipywidgets too. However, if a specific example uses the param library, or widgets from the panel module, then users will have to modify the params dictionary in order to make it work with ipywidgets. Refer to Interactive module for more information.

spb.graphics.control.pole_zero(system, pole_markersize=10, zero_markersize=7, show_axes=False, label=None, sgrid=False, zgrid=False, control=True, input=None, output=None, **kwargs)[source]

Computes the [Pole-Zero] plot (also known as PZ Plot or PZ Map) of a system.

A Pole-Zero plot is a graphical representation of a system’s poles and zeros. It is plotted on a complex plane, with circular markers representing the system’s zeros and ‘x’ shaped markers representing the system’s poles.

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

pole_markersizeint

The size of the markers used to mark the poles in the plot. It must be: 1 ≤ pole_markersize < ∞. Default value: 10.

zero_markersizeint

The size of the markers used to mark the zeros in the plot. It must be: 1 ≤ zero_markersize < ∞. Default value: 10.

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

sgridbool, optional

Generates a grid of constant damping ratios and natural frequencies on the s-plane. Default to False.

zgridbool, optional

Generates a grid of constant damping ratios and natural frequencies on the z-plane. Default to False.

controlbool, optional

If True, computes the poles/zeros with the control module, which uses numerical integration. If False, computes them with sympy. Default to True.

inputint, optional

Only compute the poles/zeros for the listed input. If not specified, the poles/zeros for each independent input are computed (as separate traces).

outputint, optional

Only compute the poles/zeros for the listed output. If not specified, all outputs are reported.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

control_kwdict

A dictionary of keyword arguments to be passed to the function of the control module that will generate numerical data starting from the transfer function stored in system.

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

pole_colorstr, list, tuple

The color of the pole points on the plot.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

return_polesbool

If True returns the poles of the transfer function, otherwise it returns the zeros. Default value: True.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

zero_colorstr, list, tuple

The color of the zero points on the plot.

Returns:
A list containing:
  • one instance of SGridLineSeries if sgrid=True.
  • one instance of ZGridLineSeries if zgrid=True.
  • one or more instances of PoleZeroWithSympySeries if control=False.
  • one or more instances of PoleZeroSeries if control=True.

See also

sgrid, zgrid, root_locus

References

Examples

from sympy.abc import s
from sympy import I
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(
    s**2 + 1, s**4 + 4*s**3 + 6*s**2 + 5*s + 2, s)

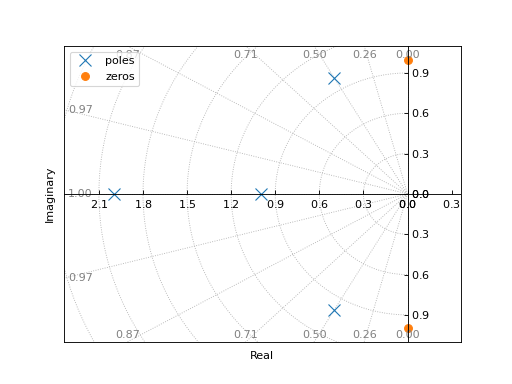

graphics(
    pole_zero(tf1, sgrid=True),
    grid=False, xlabel="Real", ylabel="Imaginary"
)

(Source code, png)

../../_images/control-2.png

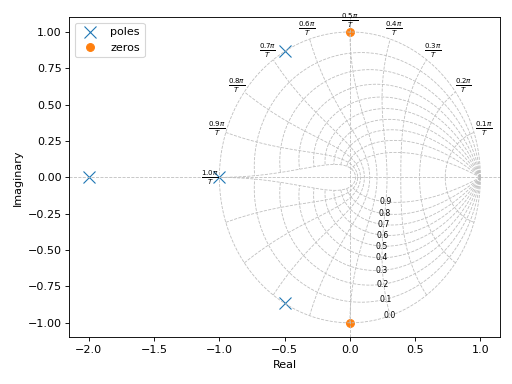

Plotting poles and zeros on the z-plane:

graphics(
    pole_zero(tf1, zgrid=True),
    grid=False, xlabel="Real", ylabel="Imaginary"
)

(Source code, png)

../../_images/control-3.png

If a transfer function has complex coefficients, make sure to request the evaluation using sympy instead of the control module:

tf = TransferFunction(s + 2, s**2 + (2+I)*s + 10, s)
graphics(
    control_axis(),
    pole_zero(tf, control=False),
    grid=False, xlabel="Real", ylabel="Imaginary"
)

(Source code, png)

../../_images/control-4.png

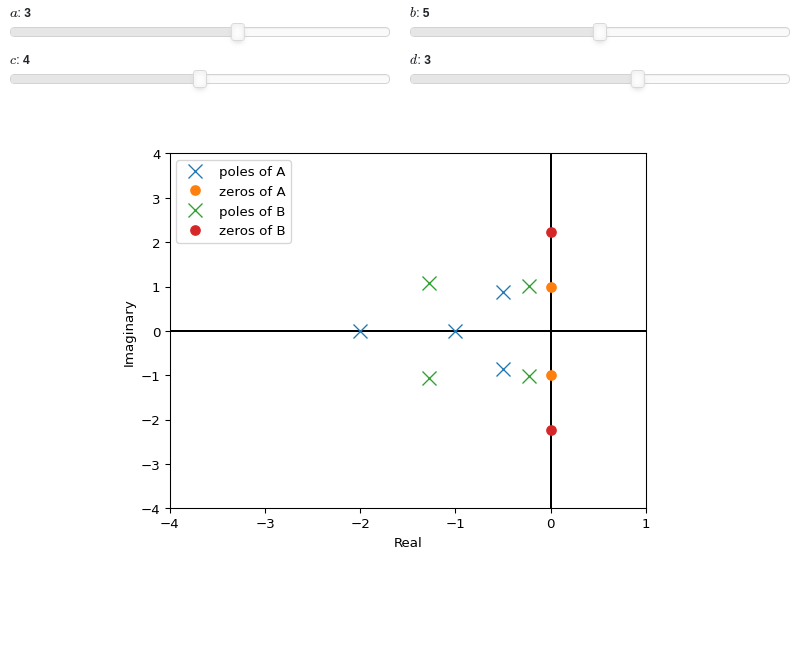

Interactive-widgets plot of multiple systems, one of which is parametric:

from sympy.abc import a, b, c, d, s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(s**2 + 1, s**4 + 4*s**3 + 6*s**2 + 5*s + 2, s)
tf2 = TransferFunction(s**2 + b, s**4 + a*s**3 + b*s**2 + c*s + d, s)
params = {
    a: (3, 0, 5),
    b: (5, 0, 10),
    c: (4, 0, 8),
    d: (3, 0, 5),
}
graphics(
    control_axis(),
    pole_zero(tf1, label="A"),
    pole_zero(tf2, label="B", params=params),
    grid=False, xlim=(-4, 1), ylim=(-4, 4),
    xlabel="Real", ylabel="Imaginary")

(Source code, small.png)

../../_images/control-5.small.png
spb.graphics.control.impulse_response(system, prec=8, lower_limit=None, upper_limit=None, label=None, rendering_kw=None, control=True, input=None, output=None, **kwargs)[source]

Returns the unit impulse response (Input is the Dirac-Delta Function) of a continuous-time system

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

precint, optional

The decimal point precision for the point coordinate values. Defaults to 8.

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

controlbool, optional

If True, computes the impulse response with the control module, which uses numerical integration. If False, computes the impulse response with sympy, which uses the inverse Laplace transform. Default to True.

inputint, optional

Only compute the impulse response for the listed input. If not specified, the impulse responses for each independent input are computed (as separate traces).

outputint, optional

Only compute the impulse response for the listed output. If not specified, all outputs are reported.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

control_kwdict, optional

A dictionary of keyword arguments passed to control.impulse_response()

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

line_color

For back-compatibility with old sympy.plotting. Use rendering_kw in order to fully customize the appearance of the line/scatter.

n1int

Number of discretization points along the time axis to be used in the evaluation. It must be: 2 ≤ n1 < ∞. Default value: 100.

only_integersbool

Discretize the domain using only integer numbers. Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

stepsNoneType, bool, str

If set, it connects consecutive points with steps rather than straight segments. Possible options: [‘pre’, ‘post’, ‘mid’, True, False, None] Default value: False.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

Returns:
A list containing one or more instances of:
  • LineOver1DRangeSeries if control=False.
  • SystemResponseSeries if control=True.

See also

step_response, ramp_response

References

Examples

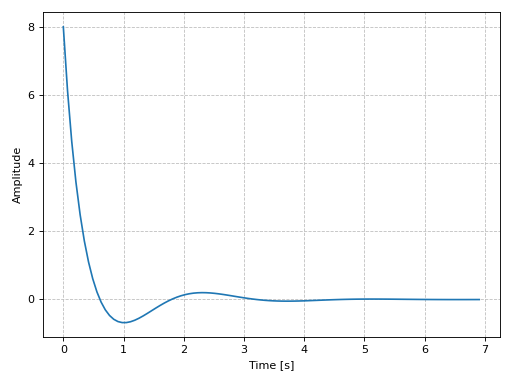

Plotting a SISO system:

from sympy.abc import s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(
    8*s**2 + 18*s + 32, s**3 + 6*s**2 + 14*s + 24, s)
graphics(
    impulse_response(tf1),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-6.png

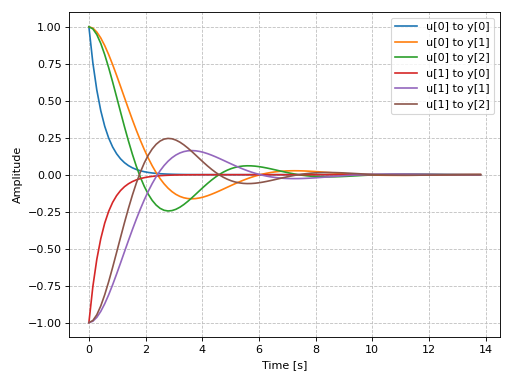

Plotting a MIMO system:

from sympy.physics.control.lti import TransferFunctionMatrix
tf1 = TransferFunction(1, s + 2, s)
tf2 = TransferFunction(s + 1, s**2 + s + 1, s)
tf3 = TransferFunction(s + 1, s**2 + s + 1.5, s)
tfm = TransferFunctionMatrix(
    [[tf1, -tf1], [tf2, -tf2], [tf3, -tf3]])
graphics(
    impulse_response(tfm),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-7.png

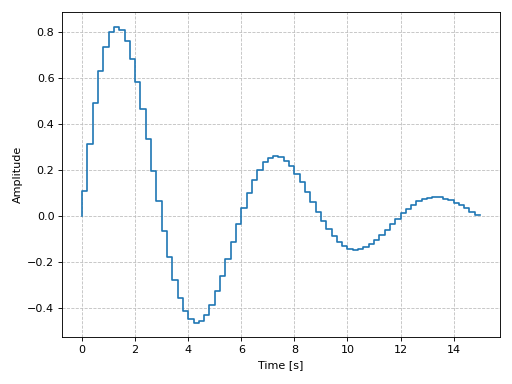

Plotting a discrete-time system:

import control as ct
G = ct.tf([0.0244, 0.0236], [1.1052, -2.0807, 1.0236], dt=0.2)
graphics(
    impulse_response(G, upper_limit=15),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-8.png

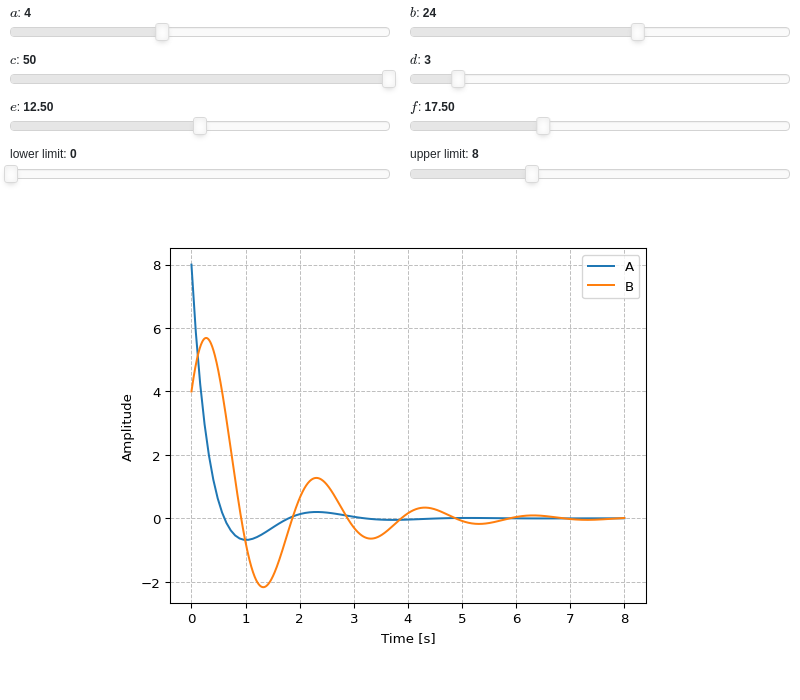

Interactive-widgets plot of multiple systems, one of which is parametric. A few observations:

  1. The first system’s response will be computed with SymPy because control=False was set.

  2. The second system’s response will be computed with the control module, because control=True was set.

  3. Note the use of parametric lower_limit and upper_limit.

  4. By moving the “lower limit” slider, the first system (evaluated with SymPy) will start from some amplitude value. However, on the second system (evaluated with the control module), the amplitude always starts from 0. That’s because the numerical integration’s initial condition is 0. Hence, if lower_limit is to be used, please set control=False.

from sympy.abc import a, b, c, d, e, f, g, h, s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(8*s**2 + 18*s + 32, s**3 + 6*s**2 + 14*s + 24, s)
tf2 = TransferFunction(a*s**2 + b*s + c, s**3 + d*s**2 + e*s + f, s)
params = {
    a: (4, 0, 10),
    b: (24, 0, 40),
    c: (50, 0, 50),
    d: (3, 0, 25),
    e: (12.5, 0, 25),
    f: (17.5, 0, 50),
    g: (0, 0, 10, 50, "lower limit"),
    h: (8, 0, 25, 50, "upper limit"),
}
graphics(
    impulse_response(
        tf1, label="A", lower_limit=g, upper_limit=h, params=params,
        control=True),
    impulse_response(
        tf2, label="B", lower_limit=g, upper_limit=h, params=params,
        control=False),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, small.png)

../../_images/control-9.small.png
spb.graphics.control.step_response(system, lower_limit=None, upper_limit=None, prec=8, label=None, rendering_kw=None, control=True, input=None, output=None, **kwargs)[source]

Returns the unit step response of a continuous-time system. It is the response of the system when the input signal is a step function.

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

lower_limitNumber or None, optional

The lower time limit of the plot range. Defaults to 0. If a different value is to be used, also set control=False (see examples in order to understand why).

upper_limitNumber or None, optional

The upper time limit of the plot range. If not provided, an appropriate value will be computed. If a interactive widget plot is being created, it defaults to 10.

precint, optional

The decimal point precision for the point coordinate values. Defaults to 8.

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

controlbool, optional

If True, computes the step response with the control module, which uses numerical integration. If False, computes the step response with sympy, which uses the inverse Laplace transform. Default to True.

inputint, optional

Only compute the step response for the listed input. If not specified, the step responses for each independent input are computed (as separate traces).

outputint, optional

Only compute the step response for the listed output. If not specified, all outputs are reported.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

control_kwdict, optional

A dictionary of keyword arguments passed to control.step_response()

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

line_color

For back-compatibility with old sympy.plotting. Use rendering_kw in order to fully customize the appearance of the line/scatter.

n1int

Number of discretization points along the time axis to be used in the evaluation. It must be: 2 ≤ n1 < ∞. Default value: 100.

only_integersbool

Discretize the domain using only integer numbers. Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

stepsNoneType, bool, str

If set, it connects consecutive points with steps rather than straight segments. Possible options: [‘pre’, ‘post’, ‘mid’, True, False, None] Default value: False.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

Returns:
A list containing one or more instances of:
  • LineOver1DRangeSeries if control=False.
  • SystemResponseSeries if control=True.

See also

impulse_response, ramp_response

References

Examples

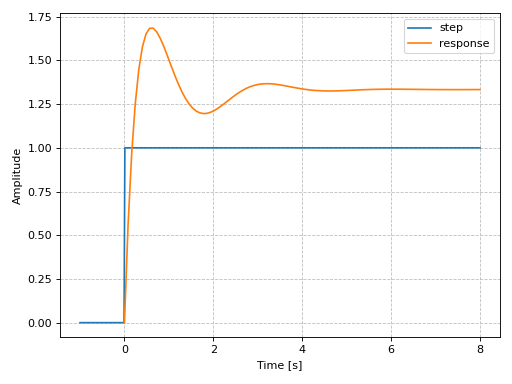

Plotting a SISO system:

from sympy.abc import s, t
from sympy import Heaviside
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(
    8*s**2 + 18*s + 32, s**3 + 6*s**2 + 14*s + 24, s)
graphics(
    line(Heaviside(t), (t, -1, 8), label="step"),
    step_response(tf1, label="response", upper_limit=8),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-10.png

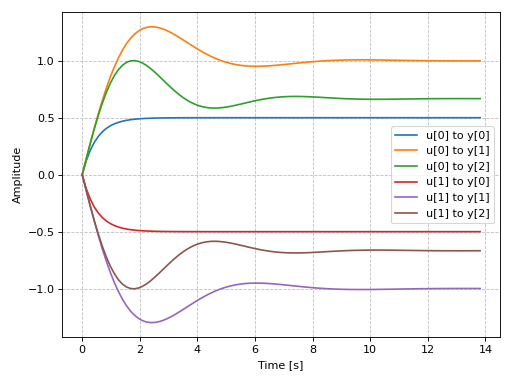

Plotting a MIMO system:

from sympy.physics.control.lti import TransferFunctionMatrix
tf1 = TransferFunction(1, s + 2, s)
tf2 = TransferFunction(s + 1, s**2 + s + 1, s)
tf3 = TransferFunction(s + 1, s**2 + s + 1.5, s)
tfm = TransferFunctionMatrix(
    [[tf1, -tf1], [tf2, -tf2], [tf3, -tf3]])
graphics(
    step_response(tfm),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-11.png

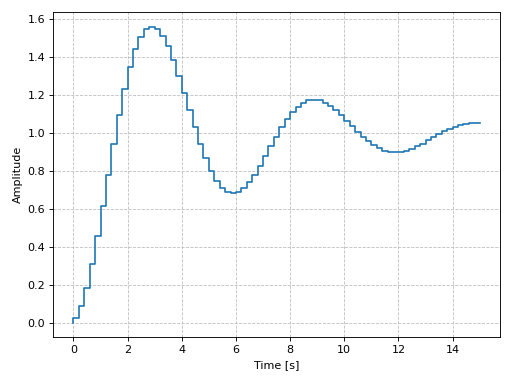

Plotting a discrete-time system:

import control as ct
G = ct.tf([0.0244, 0.0236], [1.1052, -2.0807, 1.0236], dt=0.2)
graphics(
    step_response(G, upper_limit=15),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-12.png

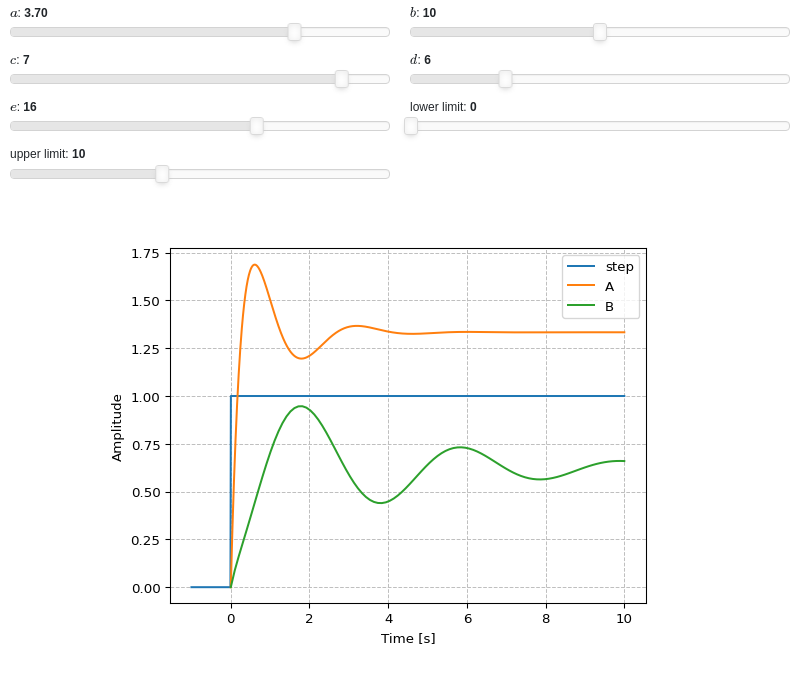

Interactive-widgets plot of multiple systems, one of which is parametric. A few observations:

  1. The first system’s response will be computed with SymPy because control=False was set.

  2. The second system’s response will be computed with the control module, because control=True was set.

  3. Note the use of parametric lower_limit and upper_limit.

  4. By moving the “lower limit” slider, the first system (evaluated with SymPy) will start from some amplitude value. However, on the second system (evaluated with the control module), the amplitude always starts from 0. That’s because the numerical integration’s initial condition is 0. Hence, if lower_limit is to be used, please set control=False.

from sympy.abc import a, b, c, d, e, f, g, s, t
from sympy import Heaviside
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(8*s**2 + 18*s + 32, s**3 + 6*s**2 + 14*s + 24, s)
tf2 = TransferFunction(s**2 + a*s + b, s**3 + c*s**2 + d*s + e, s)
params = {
    a: (3.7, 0, 5),
    b: (10, 0, 20),
    c: (7, 0, 8),
    d: (6, 0, 25),
    e: (16, 0, 25),
    f: (0, 0, 10, 50, "lower limit"),
    g: (10, 0, 25, 50, "upper limit"),
}
graphics(
    line(Heaviside(t), (t, -1, 10), label="step"),
    step_response(
        tf1, label="A", lower_limit=f, upper_limit=g, params=params,
        control=False),
    step_response(
        tf2, label="B", lower_limit=f, upper_limit=g, params=params,
        control=True),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, small.png)

../../_images/control-13.small.png
spb.graphics.control.ramp_response(system, prec=8, slope=1, lower_limit=None, upper_limit=None, label=None, rendering_kw=None, control=True, input=None, output=None, **kwargs)[source]

Returns the ramp response of a continuous-time system.

Ramp function is defined as the straight line passing through origin (\(f(x) = mx\)). The slope of the ramp function can be varied by the user and the default value is 1.

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

precint, optional

The decimal point precision for the point coordinate values. Defaults to 8.

slopeNumber, optional

The slope of the input ramp function. Defaults to 1.

lower_limitNumber or None, optional

The lower time limit of the plot range. Defaults to 0. If a different value is to be used, also set control=False (see examples in order to understand why).

upper_limitNumber or None, optional

The upper time limit of the plot range. If not provided, an appropriate value will be computed. If a interactive widget plot is being created, it defaults to 10.

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

controlbool, optional

If True, computes the ramp response with the control module, which uses numerical integration. If False, computes the ramp response with sympy, which uses the inverse Laplace transform. Default to True.

inputint, optional

Only compute the ramp response for the listed input. If not specified, the ramp responses for each independent input are computed (as separate traces).

outputint, optional

Only compute the ramp response for the listed output. If not specified, all outputs are reported.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

control_kwdict, optional

A dictionary of keyword arguments passed to control.forced_response()

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

line_color

For back-compatibility with old sympy.plotting. Use rendering_kw in order to fully customize the appearance of the line/scatter.

n1int

Number of discretization points along the time axis to be used in the evaluation. It must be: 2 ≤ n1 < ∞. Default value: 100.

only_integersbool

Discretize the domain using only integer numbers. Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

stepsNoneType, bool, str

If set, it connects consecutive points with steps rather than straight segments. Possible options: [‘pre’, ‘post’, ‘mid’, True, False, None] Default value: False.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

Returns:
A list containing one or more instances of:
  • LineOver1DRangeSeries if control=False.
  • SystemResponseSeries if control=True.

See also

plot_step_response, plot_impulse_response

References

Examples

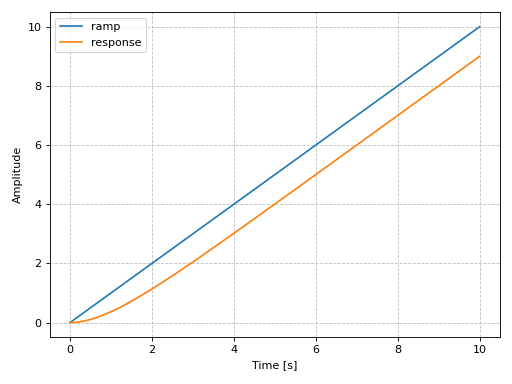

Plotting a SISO system:

from sympy.abc import s, t
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(1, (s+1), s)
ul = 10
graphics(
    line(t, (t, 0, ul), label="ramp"),
    ramp_response(tf1, upper_limit=ul, label="response"),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-14.png

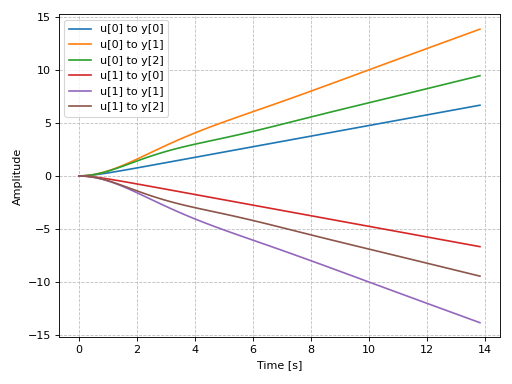

Plotting a MIMO system:

from sympy.physics.control.lti import TransferFunctionMatrix
tf1 = TransferFunction(1, s + 2, s)
tf2 = TransferFunction(s + 1, s**2 + s + 1, s)
tf3 = TransferFunction(s + 1, s**2 + s + 1.5, s)
tfm = TransferFunctionMatrix(
    [[tf1, -tf1], [tf2, -tf2], [tf3, -tf3]])
graphics(
    ramp_response(tfm),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-15.png

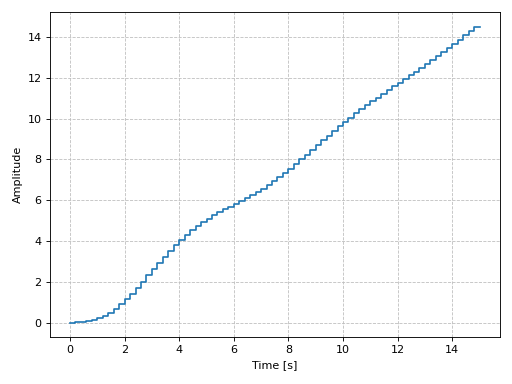

Plotting a discrete-time system:

import control as ct
G = ct.tf([0.0244, 0.0236], [1.1052, -2.0807, 1.0236], dt=0.2)
graphics(
    ramp_response(G, upper_limit=15),
    xlabel="Time [s]", ylabel="Amplitude"
)

(Source code, png)

../../_images/control-16.png

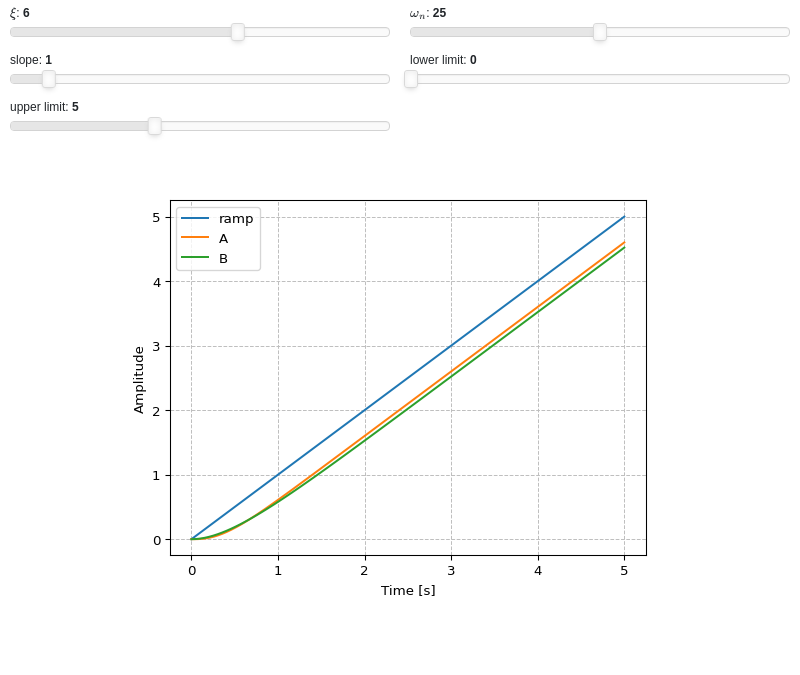

Interactive-widgets plot of multiple systems, one of which is parametric. A few observations:

  1. The first system’s response will be computed with SymPy because control=False was set.

  2. The second system’s response will be computed with the control module, because control=True was set.

  3. Note the use of parametric lower_limit and upper_limit.

  4. By moving the “lower limit” slider, the first system (evaluated with SymPy) will start from some amplitude value. However, on the second system (evaluated with the control module), the amplitude always starts from 0. That’s because the numerical integration’s initial condition is 0. Hence, if lower_limit is to be used, please set control=False.

from sympy import symbols
from sympy.physics.control.lti import TransferFunction
from spb import *
a, b, c, xi, wn, s, t = symbols("a, b, c, xi, omega_n, s, t")
tf1 = TransferFunction(25, s**2 + 10*s + 25, s)
tf2 = TransferFunction(wn**2, s**2 + 2*xi*wn*s + wn**2, s)
params = {
    xi: (6, 0, 10),
    wn: (25, 0, 50),
    a: (1, 0, 10, 50, "slope"),
    b: (0, 0, 5, 50, "lower limit"),
    c: (5, 2, 10, 50, "upper limit"),
}
graphics(
    line(a*t, (t, 0, c), params=params, label="ramp"),
    ramp_response(
        tf1, label="A", slope=a, lower_limit=b, upper_limit=c,
        params=params, control=False),
    ramp_response(
        tf2, label="B", slope=a, lower_limit=b, upper_limit=c,
        params=params, control=True),
    xlabel="Time [s]", ylabel="Amplitude")

(Source code, small.png)

../../_images/control-17.small.png
spb.graphics.control.bode_magnitude(system, initial_exp=None, final_exp=None, freq_unit='rad/sec', phase_unit='rad', label=None, rendering_kw=None, input=None, output=None, **kwargs)[source]

Returns the Bode magnitude plot of a continuous-time system.

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

initial_expNumber, optional

The initial exponent of 10 of the semilog plot. Default to None, which will autocompute the appropriate value.

final_expNumber, optional

The final exponent of 10 of the semilog plot. Default to None, which will autocompute the appropriate value.

freq_unitstring, optional

User can choose between 'rad/sec' (radians/second) and 'Hz' (Hertz) as frequency units.

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

inputint, optional

Only compute the poles/zeros for the listed input. If not specified, the poles/zeros for each independent input are computed (as separate traces).

outputint, optional

Only compute the poles/zeros for the listed output. If not specified, all outputs are reported.

color_func

A color function to be applied to the numerical data. It can be:

  • A numerical function of 2 variables, x, y (the points computed by the internal algorithm) supporting vectorization.

  • A symbolic expression having at most as many free symbols as expr.

  • None: the default value (no color mapping).

colorbarbool

Toggle the visibility of the colorbar associated to the current data series. Note that a colorbar is only visible if use_cm=True and color_func is not None. Default value: True.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

detect_polesbool, str

Chose whether to detect and correctly plot the roots of the denominator. There are two algorithms at work:

  1. based on the gradient of the numerical data, it introduces NaN values at locations where the steepness is greater than some threshold. This splits the line into multiple segments. To improve detection, increase the number of discretization points n and/or change the value of eps. This algorithm can be used to visualize jump discontinuities as well as essential discontinuities.

  2. a symbolic approach based on the continuous_domain function from the sympy.calculus.util module, which computes the locations of essential discontinuities. If any are found, vertical lines will be shown.

Possible options:

  • False: No poles detection

  • True: Poles detection with the numerical algorithm

  • ‘symbolic’: Poles detection with numerical and symbolic algorithms

Default value: False.

epsfloat

An arbitrary small value used by the detect_poles numerical algorithm. Before changing this value, it is recommended to increase the number of discretization points. Related parameters: detect_poles. It must be: 0 ≤ eps < ∞. Default value: 0.01.

excludelist

List of x-coordinates to be excluded from evaluation. In practice, it introduces discontinuities in the resulting line.

expr

It can either be a symbolic expression representing the function of one variable to be plotted, or a numerical function of one variable, supporting vectorization. In the latter case the following keyword arguments are not supported: params, sum_bound.

force_real_evalbool

By default, numerical evaluation is performed over complex numbers, which is slower but produces correct results. However, when the symbolic expression is converted to a numerical function with lambdify, the resulting function may not like to be evaluated over complex numbers. In such cases, forcing the evaluation to be performed over real numbers might be a good choice. The plotting module should be able to detect such occurences and automatically activate this option. If that is not the case, or evaluation performance is of paramount importance, set this parameter to True, but be aware that it might produce wrong results. Default value: False.

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

line_color

For back-compatibility with old sympy.plotting. Use rendering_kw in order to fully customize the appearance of the line/scatter.

modules

Specify the evaluation modules to be used by lambdify. If not specified, the evaluation will be done with NumPy/SciPy.

n1int

Number of discretization points along the parameter to be used in the numerical evaluation. An alias of this parameter is n. Related parameters: xscale. It must be: 2 ≤ n1 < ∞. Default value: 1000.

only_integersbool

Discretize the domain using only integer numbers. When this parameter is True, the number of discretization points is choosen by the algorithm. Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

poles_locationslist

When detect_poles="symbolic", stores the location of the computed poles (essential discontinuities) so that they can be appropriately rendered.

poles_rendering_kwdict

Rendering kw used to customize the appearance of vertical lines representing essential discontinuities. Related parameters: poles_locations.

range_xtuple, Tuple

A 3-tuple (symb, min, max) denoting the range of the x variable. Default values: min=-10 and max=10.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

stepsNoneType, bool, str

If set, it connects consecutive points with steps rather than straight segments. Possible options: [‘pre’, ‘post’, ‘mid’, True, False, None] Default value: False.

sum_boundint

When plotting sums, the expression will be pre-processed in order to replace lower/upper bounds set to +/- infinity with this +/- numerical value. Note: the higher this number, the slower the evaluation, but the more accurate the plot. It must be: 0 ≤ sum_bound < ∞. Default value: 1000.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

unwrapbool, dict

Whether to use numpy.unwrap() on the computed coordinates in order to get rid of discontinuities. It can be:

  • False: do not use np.unwrap().

  • True: use np.unwrap() with default keyword arguments.

  • dictionary of keyword arguments passed to np.unwrap().

use_cmbool

Toggle the use of a colormap. By default, some series might use a colormap to display the necessary data. Setting this attribute to False will inform the associated renderer to use solid color. Related parameters: color_func. Default value: False.

xscalestr

Discretization strategy along the x-direction. Related parameters: n1. Possible options: [‘linear’, ‘log’] Default value: ‘linear’.

Returns:
A list containing one instance of LineOver1DRangeSeries.

See also

bode_phase, nyquist, nichols, spb.plot_functions.control.plot_bode

Notes

plot_bode() returns a plotgrid() of two visualizations, one with the Bode magnitude, the other with the Bode phase.

Examples

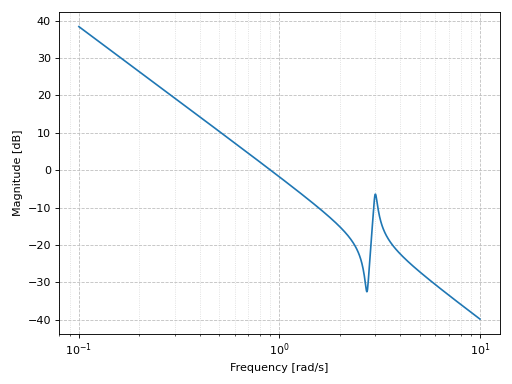

Bode magnitude plot of a continuous-time system:

from sympy.abc import s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(
    1*s**2 + 0.1*s + 7.5, 1*s**4 + 0.12*s**3 + 9*s**2, s)
graphics(
    bode_magnitude(tf1),
    xscale="log", xlabel="Frequency [rad/s]",
    ylabel="Magnitude [dB]"
)

(Source code, png)

../../_images/control-18.png

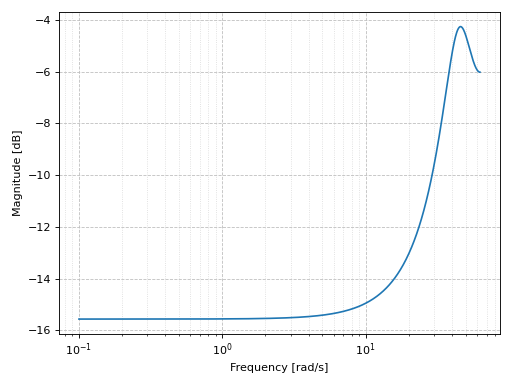

Bode magnitude plot of a discrete-time system:

import control as ct
tf2 = ct.tf([1], [1, 2, 3], dt=0.05)
graphics(
    bode_magnitude(tf2),
    xscale="log", xlabel="Frequency [rad/s]",
    ylabel="Magnitude [dB]"
)

(Source code, png)

../../_images/control-19.png

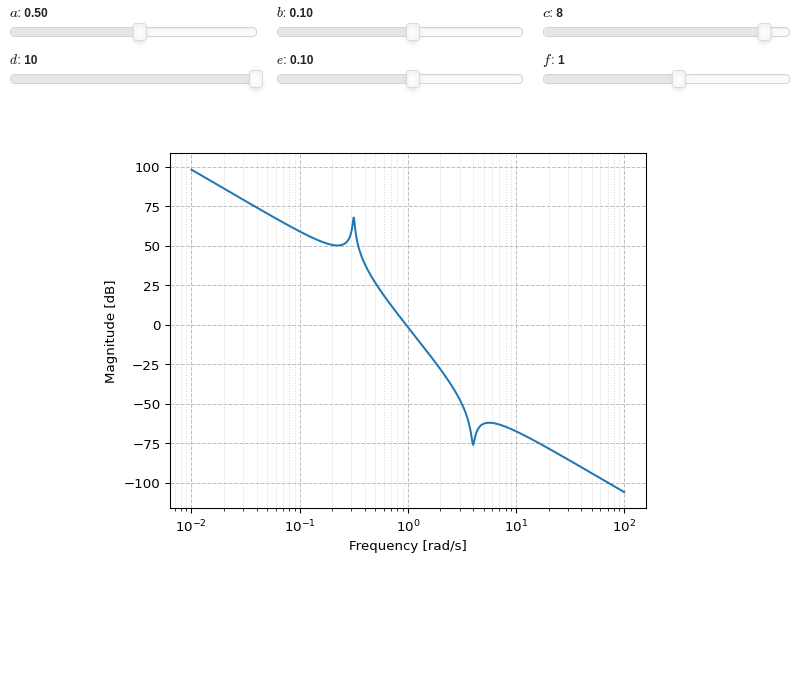

Interactive-widget plot:

from sympy.abc import a, b, c, d, e, f, s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(a*s**2 + b*s + c, d*s**4 + e*s**3 + f*s**2, s)
params = {
    a: (0.5, -10, 10),
    b: (0.1, -1, 1),
    c: (8, -10, 10),
    d: (10, -10, 10),
    e: (0.1, -1, 1),
    f: (1, -10, 10),
}
graphics(
    bode_magnitude(tf1, initial_exp=-2, final_exp=2, params=params),
    imodule="panel", ncols=3,
    xscale="log", xlabel="Frequency [rad/s]", ylabel="Magnitude [dB]"
)

(Source code, small.png)

../../_images/control-20.small.png
spb.graphics.control.bode_phase(system, initial_exp=None, final_exp=None, freq_unit='rad/sec', phase_unit='rad', label=None, rendering_kw=None, unwrap=True, input=None, output=None, **kwargs)[source]

Returns the Bode phase plot of a continuous-time system.

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

initial_expNumber, optional

The initial exponent of 10 of the semilog plot. Default to None, which will autocompute the appropriate value.

final_expNumber, optional

The final exponent of 10 of the semilog plot. Default to None, which will autocompute the appropriate value.

freq_unitstring, optional

User can choose between 'rad/sec' (radians/second) and 'Hz' (Hertz) as frequency units.

phase_unitstring, optional

User can choose between 'rad' (radians) and 'deg' (degree) as phase units.

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

unwrapbool, dict

Whether to use numpy.unwrap() on the computed coordinates in order to get rid of discontinuities. It can be:

  • False: do not use np.unwrap().

  • True: use np.unwrap() with default keyword arguments.

  • dictionary of keyword arguments passed to np.unwrap().

inputint, optional

Only compute the poles/zeros for the listed input. If not specified, the poles/zeros for each independent input are computed (as separate traces).

outputint, optional

Only compute the poles/zeros for the listed output. If not specified, all outputs are reported.

color_func

A color function to be applied to the numerical data. It can be:

  • A numerical function of 2 variables, x, y (the points computed by the internal algorithm) supporting vectorization.

  • A symbolic expression having at most as many free symbols as expr.

  • None: the default value (no color mapping).

colorbarbool

Toggle the visibility of the colorbar associated to the current data series. Note that a colorbar is only visible if use_cm=True and color_func is not None. Default value: True.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

detect_polesbool, str

Chose whether to detect and correctly plot the roots of the denominator. There are two algorithms at work:

  1. based on the gradient of the numerical data, it introduces NaN values at locations where the steepness is greater than some threshold. This splits the line into multiple segments. To improve detection, increase the number of discretization points n and/or change the value of eps. This algorithm can be used to visualize jump discontinuities as well as essential discontinuities.

  2. a symbolic approach based on the continuous_domain function from the sympy.calculus.util module, which computes the locations of essential discontinuities. If any are found, vertical lines will be shown.

Possible options:

  • False: No poles detection

  • True: Poles detection with the numerical algorithm

  • ‘symbolic’: Poles detection with numerical and symbolic algorithms

Default value: False.

epsfloat

An arbitrary small value used by the detect_poles numerical algorithm. Before changing this value, it is recommended to increase the number of discretization points. Related parameters: detect_poles. It must be: 0 ≤ eps < ∞. Default value: 0.01.

excludelist

List of x-coordinates to be excluded from evaluation. In practice, it introduces discontinuities in the resulting line.

expr

It can either be a symbolic expression representing the function of one variable to be plotted, or a numerical function of one variable, supporting vectorization. In the latter case the following keyword arguments are not supported: params, sum_bound.

force_real_evalbool

By default, numerical evaluation is performed over complex numbers, which is slower but produces correct results. However, when the symbolic expression is converted to a numerical function with lambdify, the resulting function may not like to be evaluated over complex numbers. In such cases, forcing the evaluation to be performed over real numbers might be a good choice. The plotting module should be able to detect such occurences and automatically activate this option. If that is not the case, or evaluation performance is of paramount importance, set this parameter to True, but be aware that it might produce wrong results. Default value: False.

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

line_color

For back-compatibility with old sympy.plotting. Use rendering_kw in order to fully customize the appearance of the line/scatter.

modules

Specify the evaluation modules to be used by lambdify. If not specified, the evaluation will be done with NumPy/SciPy.

n1int

Number of discretization points along the parameter to be used in the numerical evaluation. An alias of this parameter is n. Related parameters: xscale. It must be: 2 ≤ n1 < ∞. Default value: 1000.

only_integersbool

Discretize the domain using only integer numbers. When this parameter is True, the number of discretization points is choosen by the algorithm. Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

poles_locationslist

When detect_poles="symbolic", stores the location of the computed poles (essential discontinuities) so that they can be appropriately rendered.

poles_rendering_kwdict

Rendering kw used to customize the appearance of vertical lines representing essential discontinuities. Related parameters: poles_locations.

range_xtuple, Tuple

A 3-tuple (symb, min, max) denoting the range of the x variable. Default values: min=-10 and max=10.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

stepsNoneType, bool, str

If set, it connects consecutive points with steps rather than straight segments. Possible options: [‘pre’, ‘post’, ‘mid’, True, False, None] Default value: False.

sum_boundint

When plotting sums, the expression will be pre-processed in order to replace lower/upper bounds set to +/- infinity with this +/- numerical value. Note: the higher this number, the slower the evaluation, but the more accurate the plot. It must be: 0 ≤ sum_bound < ∞. Default value: 1000.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

use_cmbool

Toggle the use of a colormap. By default, some series might use a colormap to display the necessary data. Setting this attribute to False will inform the associated renderer to use solid color. Related parameters: color_func. Default value: False.

xscalestr

Discretization strategy along the x-direction. Related parameters: n1. Possible options: [‘linear’, ‘log’] Default value: ‘linear’.

Returns:
A list containing one instance of LineOver1DRangeSeries.

See also

bode_magnitude, nyquist, nichols

Notes

plot_bode() returns a plotgrid() of two visualizations, one with the Bode magnitude, the other with the Bode phase.

Examples

Bode phase plot of a continuous-time system:

from sympy.abc import s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(
    1*s**2 + 0.1*s + 7.5, 1*s**4 + 0.12*s**3 + 9*s**2, s)
graphics(
    bode_phase(tf1, initial_exp=0.2, final_exp=0.7),
    xscale="log", xlabel="Frequency [rad/s]",
    ylabel="Magnitude [dB]"
)

(Source code, png)

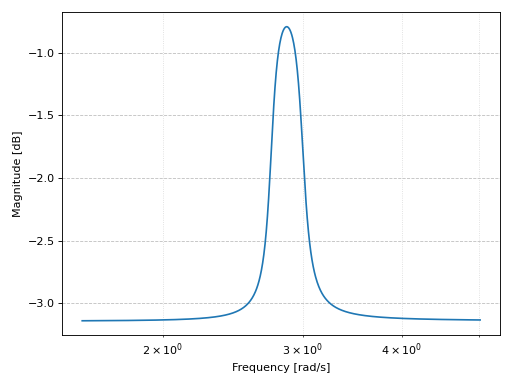

../../_images/control-21.png

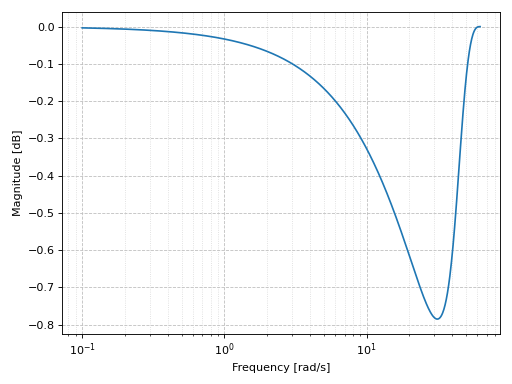

Bode phase plot of a discrete-time system:

import control as ct
tf2 = ct.tf([1], [1, 2, 3], dt=0.05)
graphics(
    bode_phase(tf2),
    xscale="log", xlabel="Frequency [rad/s]",
    ylabel="Magnitude [dB]"
)

(Source code, png)

../../_images/control-22.png

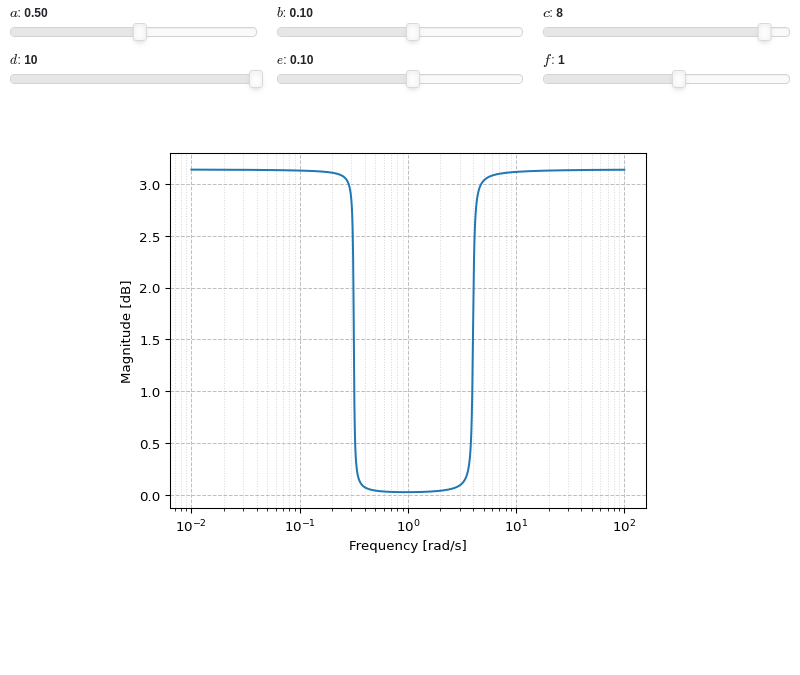

Interactive-widget plot:

from sympy.abc import a, b, c, d, e, f, s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(a*s**2 + b*s + c, d*s**4 + e*s**3 + f*s**2, s)
params = {
    a: (0.5, -10, 10),
    b: (0.1, -1, 1),
    c: (8, -10, 10),
    d: (10, -10, 10),
    e: (0.1, -1, 1),
    f: (1, -10, 10),
}
graphics(
    bode_phase(tf1, initial_exp=-2, final_exp=2, params=params),
    imodule="panel", ncols=3,
    xscale="log", xlabel="Frequency [rad/s]", ylabel="Magnitude [dB]"
)

(Source code, small.png)

../../_images/control-23.small.png
spb.graphics.control.nyquist(system, omega_limits=None, input=None, output=None, label=None, rendering_kw=None, m_circles=False, **kwargs)[source]

Plots a Nyquist plot for the system over a (optional) frequency range. The curve is computed by evaluating the Nyquist segment along the positive imaginary axis, with a mirror image generated to reflect the negative imaginary axis. Poles on or near the imaginary axis are avoided using a small indentation. The portion of the Nyquist contour at infinity is not explicitly computed (since it maps to a constant value for any system with a proper transfer function).

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

omega_limitsarray_like of two values, optional

Limits to the range of frequencies.

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

m_circlesbool or float or iterable, optional

Turn on/off M-circles, which are circles of constant closed loop magnitude. If float or iterable (of floats), represents specific magnitudes in dB.

arrows

Specify the number of arrows to plot on the Nyquist/Nichols curve. It can be:

  • an integer, representing the number of equally spaced arrows that will be plotted on each of the primary segment and the mirror image.

  • If a 1D array is passed, it should consist of a sorted list of floats between 0 and 1, indicating the location along the curve to plot an arrow.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

control_kwdict

A dictionary of keyword arguments passed to control.nyquist_response()

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

max_curve_magnitudefloat

Restrict the maximum magnitude of the Nyquist plot to this value. Portions of the Nyquist plot whose magnitude is restricted are plotted using a different line style. It must be: 0 ≤ max_curve_magnitude < ∞. Default value: 20.

max_curve_offsetfloat

When plotting scaled portion of the Nyquist plot, increase/decrease the magnitude by this fraction of the max_curve_magnitude to allow any overlaps between the primary and mirror curves to be avoided. Default value: 0.02.

mirror_style

Linestyles for mirror image of the Nyquist curve. It can be: [str, str] or [dict, dict] or dict. If a list is given, the first element is used for unscaled portions of the Nyquist curve, the second element is used for portions that are scaled (using max_curve_magnitude). dict is a dictionary of keyword arguments to be passed to the plotting function, for example to plt.plot. If False then omit completely. Default linestyle is [’–’, ‘:’].

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

primary_style

Linestyles for primary image of the Nyquist curve. It can be: [str, str] or [dict, dict] or dict. If a list is given, the first element is used for unscaled portions of the Nyquist curve, the second element is used for portions that are scaled (using max_curve_magnitude). dict is a dictionary of keyword arguments to be passed to the plotting function, for example to Matplotlib’s plt.plot. Default linestyle is [‘-’, ‘-.’].

range_omegatuple, Tuple

A 3-tuple (symb, min, max) denoting the range of the frequencies.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

start_markerbool, str, dict, NoneType

Marker to use to mark the starting point of the Nyquist plot. If dict is provided, it must containts keyword arguments to be passed to the plot function, for example to Matplotlib’s plt.plot.

stepsNoneType, bool, str

If set, it connects consecutive points with steps rather than straight segments. Possible options: [‘pre’, ‘post’, ‘mid’, True, False, None] Default value: False.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

unwrapbool, dict

Whether to use numpy.unwrap() on the computed coordinates in order to get rid of discontinuities. It can be:

  • False: do not use np.unwrap().

  • True: use np.unwrap() with default keyword arguments.

  • dictionary of keyword arguments passed to np.unwrap().

Returns:
A list containing:
  • one instance of MCirclesSeries if mcircles=True.
  • one instance of NyquistLineSeries.

See also

bode, nichols, mcircles

Notes

  1. If a continuous-time system contains poles on or near the imaginary axis, a small indentation will be used to avoid the pole. The radius of the indentation is given by indent_radius and it is taken to the right of stable poles and the left of unstable poles. If a pole is exactly on the imaginary axis, the indent_direction parameter can be used to set the direction of indentation. Setting indent_direction to none will turn off indentation. If return_contour is True, the exact contour used for evaluation is returned.

  2. For those portions of the Nyquist plot in which the contour is indented to avoid poles, resuling in a scaling of the Nyquist plot, the line styles are according to the settings of the primary_style and mirror_style keywords. By default the scaled portions of the primary curve use a dotted line style and the scaled portion of the mirror image use a dashdot line style.

References

Examples

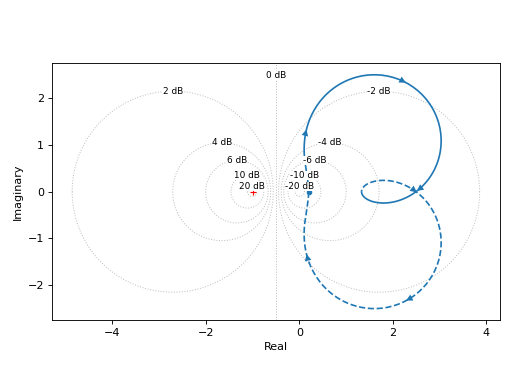

Plotting a single transfer function:

from sympy import Rational
from sympy.abc import s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf1 = TransferFunction(
    4 * s**2 + 5 * s + 1, 3 * s**2 + 2 * s + 5, s)
graphics(
    nyquist(tf1, m_circles=True),
    xlabel="Real", ylabel="Imaginary",
    grid=False, aspect="equal"
)

(Source code, png)

../../_images/control-24.png

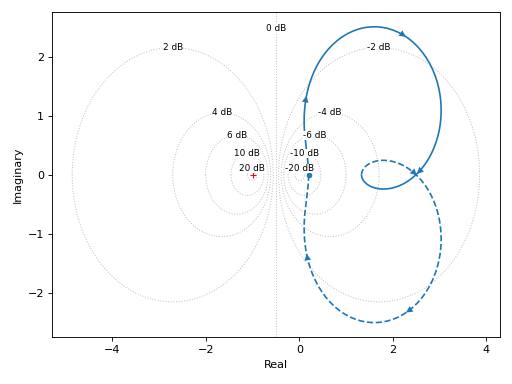

Visualizing M-circles:

graphics(
    nyquist(tf1, m_circles=True),
    grid=False, xlabel="Real", ylabel="Imaginary"
)

(Source code, png)

../../_images/control-25.png

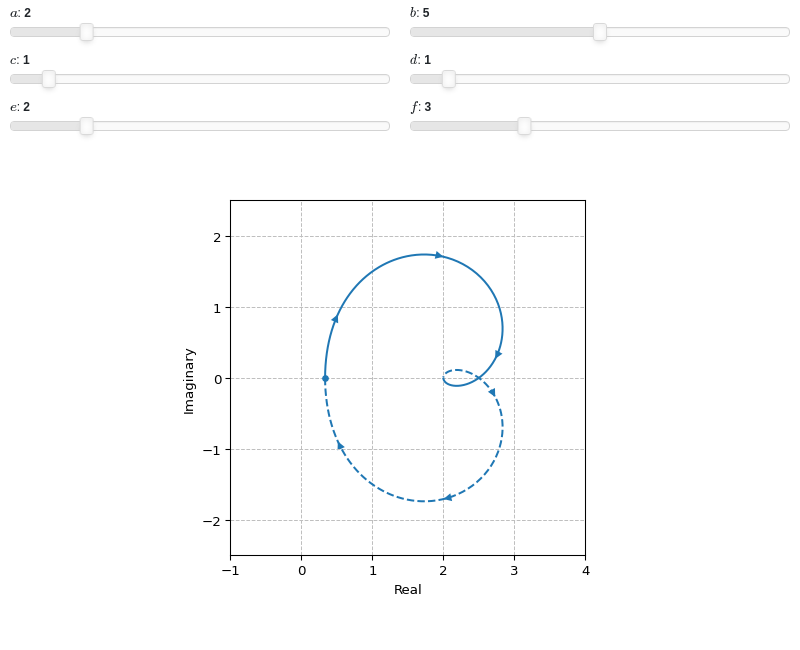

Interactive-widgets plot of a systems:

from sympy.abc import a, b, c, d, e, f, s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf = TransferFunction(a * s**2 + b * s + c, d**2 * s**2 + e * s + f, s)
params = {
    a: (2, 0, 10),
    b: (5, 0, 10),
    c: (1, 0, 10),
    d: (1, 0, 10),
    e: (2, 0, 10),
    f: (3, 0, 10),
}
graphics(
    nyquist(tf, params=params),
    xlabel="Real", ylabel="Imaginary",
    xlim=(-1, 4), ylim=(-2.5, 2.5), aspect="equal"
)

(Source code, small.png)

../../_images/control-26.small.png
spb.graphics.control.ngrid(cl_mags=None, cl_phases=None, label_cl_phases=False, rendering_kw=None, **kwargs)[source]

Create the n-grid (Nichols grid) of constant closed-loop magnitudes and phases.

Parameters:
cl_magsndarray

Array of closed-loop magnitudes defining the iso-gain lines.

cl_phasesndarray

Array of closed-loop phases defining the iso-phase lines. Must be in the range -360 < cl_phases < 0.

label_cl_phasesbool

Toggle the visibility of the labels assciated to the closed-loop phase. Default value: True.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

show_cl_magsbool

Toggle the visibility of the closed-loop magnitude grid lines. Default value: True.

show_cl_phasesbool

Toggle the visibility of the closed-loop phase grid lines. Default value: True.

xlimtuple

Axis limits along the x-direction.

ylimtuple

Axis limits along the x-direction.

Returns:
A list containing one instance of NGridLineSeries.

See also

nichols

Examples

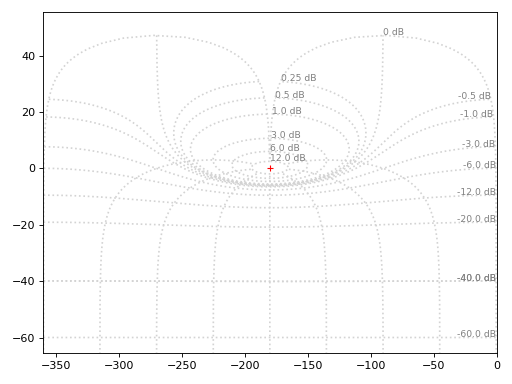

Default N-grid:

from spb import *
graphics(
    ngrid(),
    grid=False
)

(Source code, png)

../../_images/control-27.png

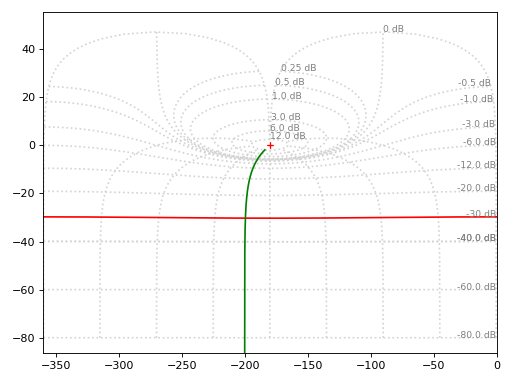

Highlight specific values of closed-loop magnitude and closed-loop phase:

graphics(
    ngrid(label_cl_phases=False),
    ngrid(cl_mags=-30, cl_phases=False, rendering_kw={"color": "r", "linestyle": "-"}),
    ngrid(cl_mags=False, cl_phases=-200, rendering_kw={"color": "g", "linestyle": "-"}),
    grid=False
)

(Source code, png)

../../_images/control-28.png
spb.graphics.control.nichols(system, label=None, rendering_kw=None, ngrid=True, arrows=True, input=None, output=None, **kwargs)[source]

Nichols plot for a system over a (optional) frequency range.

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

ngridbool, optional

Turn on/off the [Nichols] grid lines.

arrows

Specify the number of arrows to plot on the Nyquist/Nichols curve. It can be:

  • an integer, representing the number of equally spaced arrows that will be plotted on each of the primary segment and the mirror image.

  • If a 1D array is passed, it should consist of a sorted list of floats between 0 and 1, indicating the location along the curve to plot an arrow.

inputint, optional

Only compute the poles/zeros for the listed input. If not specified, the poles/zeros for each independent input are computed (as separate traces).

outputint, optional

Only compute the poles/zeros for the listed output. If not specified, all outputs are reported.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

modules

Specify the evaluation modules to be used by lambdify. If not specified, the evaluation will be done with NumPy/SciPy.

n1int

Number of discretization points along the pulsation to be used in the evaluation. Related parameters: xscale. Default value: 100.

omega_limitsarray_like of two values, optional

Limits to the range of frequencies.

only_integersbool

Discretize the domain using only integer numbers. When this parameter is True, the number of discretization points is choosen by the algorithm. Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

xscalestr

Discretization strategy along the pulsation. Related parameters: n1. Possible options: [‘linear’, ‘log’] Default value: ‘log’.

Returns:
A list containing:
  • one instance of NGridLineSeries if ngrid=True.
  • one instance of NicholsLineSeries.

See also

bode_magnitude, bode_phase, nyquist, ngrid

References

Examples

Plotting a single transfer function:

from sympy.abc import s
from sympy.physics.control.lti import TransferFunction
from spb import *
tf = TransferFunction(50*s**2 - 20*s + 15, -10*s**2 + 40*s + 30, s)
graphics(
    nichols(tf),
    xlabel="Open-Loop Phase [deg]",
    ylabel="Open-Loop Magnitude [dB]",
    grid=False
)

(Source code, png)

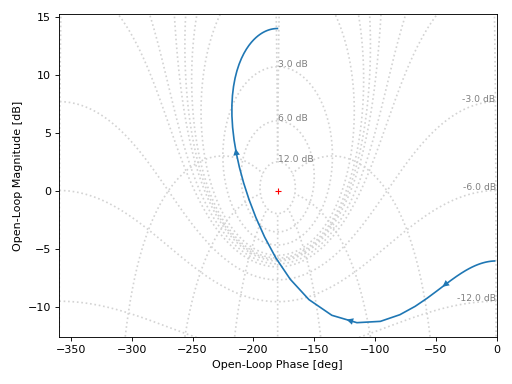

../../_images/control-29.png

Turning off the Nichols grid lines:

graphics(
    nichols(tf, ngrid=False),
    xlabel="Open-Loop Phase [deg]",
    ylabel="Open-Loop Magnitude [dB]",
    grid=False
)

(Source code, png)

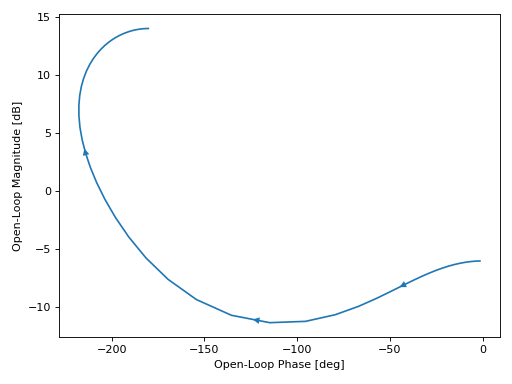

../../_images/control-30.png

Interactive-widgets plot of a systems. For these kind of plots, it is recommended to set both omega_limits and xlim:

from sympy.abc import a, b, c, s
from spb import *
from sympy.physics.control.lti import TransferFunction
tf = TransferFunction(a*s**2 + b*s + c, s**3 + 10*s**2 + 5 * s + 1, s)
params = {
    a: (-25, -100, 100),
    b: (60, -300, 300),
    c: (-100, -1000, 1000),
}
graphics(
    nichols(tf, omega_limits=[1e-03, 1e03], n=1e04, params=params),
    xlabel="Open-Loop Phase [deg]",
    ylabel="Open-Loop Magnitude [dB]",
    xlim=(-360, 360), grid=False,
)

(Source code, small.png)

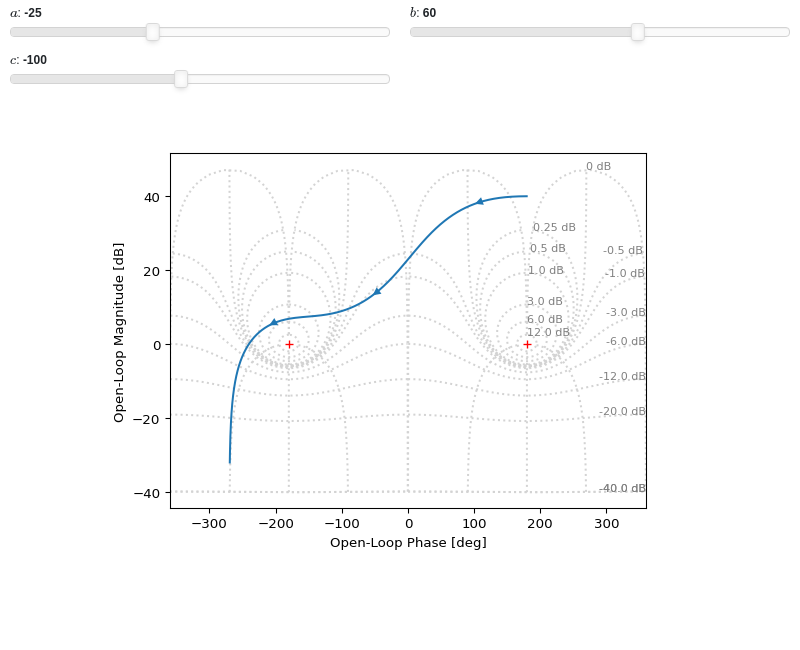

../../_images/control-31.small.png
spb.graphics.control.mcircles(magnitudes_db=None, rendering_kw=None, show_minus_one=True, **kwargs)[source]

Draw M-circles of constant closed-loop magnitude.

Parameters:
magnitudes_dbfloat, iterable or None

Specify the magnitudes in dB. If None, a list of default magnitudes will be used.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

show_minus_onebool

Show a marker at (x, y) = (-1, 0). Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

xlimtuple

Axis limits along the x-direction.

ylimtuple

Axis limits along the x-direction.

Returns:
A list containing one instance of MCirclesSeries.

See also

nyquist

Examples

from spb import *
graphics(
    mcircles(),
    mcircles(-3, rendering_kw={"color": "r"}),
    grid=False, aspect="equal")

(Source code, png)

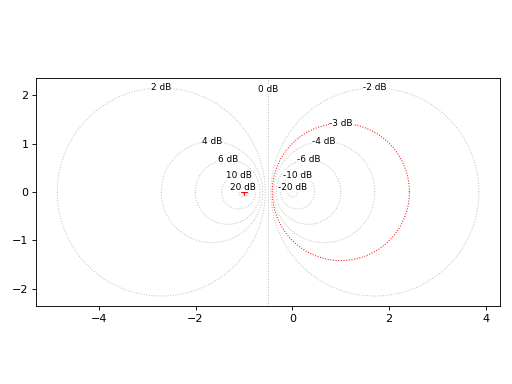

../../_images/control-32.png

Interactive-widgets plot of m-circles:

from spb import *
from sympy.abc import m
graphics(
    mcircles(),
    mcircles(m, rendering_kw={"color": "r"}, params={m: (-3, -15, 15)}),
    grid=False, aspect="equal")

(Source code, small.png)

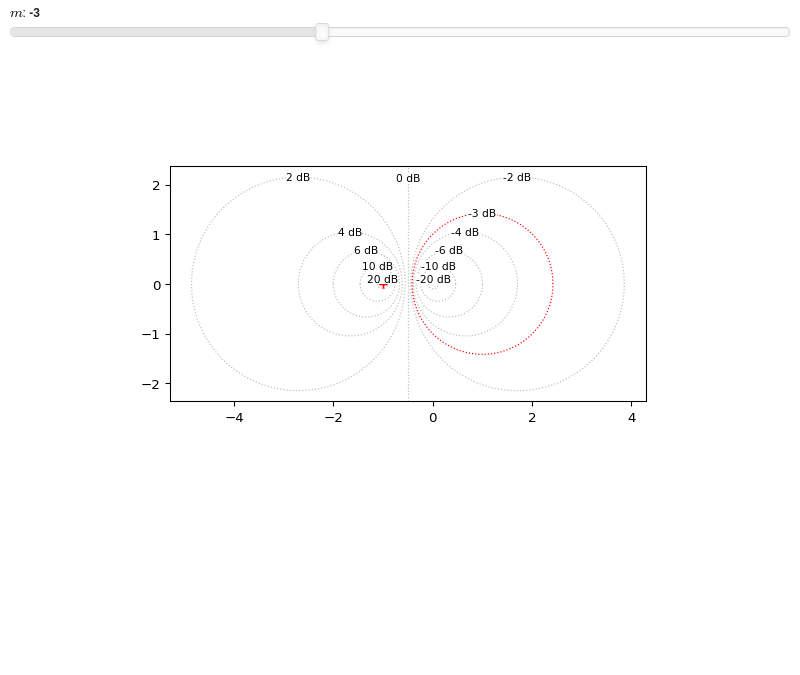

../../_images/control-33.small.png
spb.graphics.control.control_axis(hor=True, ver=True, rendering_kw=None, **kwargs)[source]

Create two axis lines to be used with control-plotting.

Parameters:
hor, verbool, optional

Wheter to add the horizontal and/or vertical axis.

rendering_kwdict, optional

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

Returns:
A list containing up to two instances of HVLineSeries.
spb.graphics.control.sgrid(xi=None, wn=None, tp=None, ts=None, xlim=None, ylim=None, show_control_axis=True, rendering_kw=None, auto=False, **kwargs)[source]

Create the s-grid of constant damping ratios and natural frequencies.

Parameters:
xilist

List of damping values where to draw a grid line.

wnlist

List of natural frequencies where to draw a grid line.

tplist

List of peak times where to draw a grid line.

tslist

List of settling times where to draw a grid line.

xlimtuple

Axis limits along the x-direction.

ylimtuple

Axis limits along the x-direction.

show_control_axisbool

Shows an horizontal and vertical grid lines crossing at the origin. Default value: True.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

autobool

If True, automatically compute damping ratio and natural frequencies in order to obtain an “evenly” distributed grid. Default value: True.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

See also

zgrid, pole_zero, root_locus

Examples

Shows the default grid lines, as well as a custom damping ratio line, a custom natural frequency line, a custom peak time line and a custom settling time line.

from spb import *
graphics(
    sgrid(),
    sgrid(xi=0.85, wn=False,
        rendering_kw={"color": "r", "linestyle": "-"},
        show_control_axis=False),
    sgrid(xi=False, wn=4.5,
        rendering_kw={"color": "g", "linestyle": "-"},
        show_control_axis=False),
    sgrid(xi=False, wn=False, tp=1,
        rendering_kw={"color": "b", "linestyle": "-"},
        show_control_axis=False),
    sgrid(xi=False, wn=False, ts=1,
        rendering_kw={"color": "m", "linestyle": "-"},
        show_control_axis=False),
    grid=False, xlim=(-8.5, 1), ylim=(-5, 5))

(Source code, png)

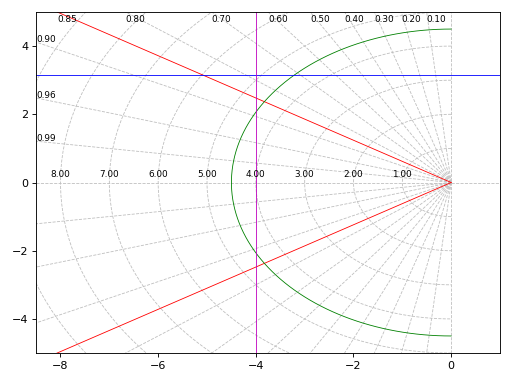

../../_images/control-34.png

Auto-generate grid lines over a specified area of of the s-plane:

graphics(
    sgrid(auto=True)
)

(Source code, png)

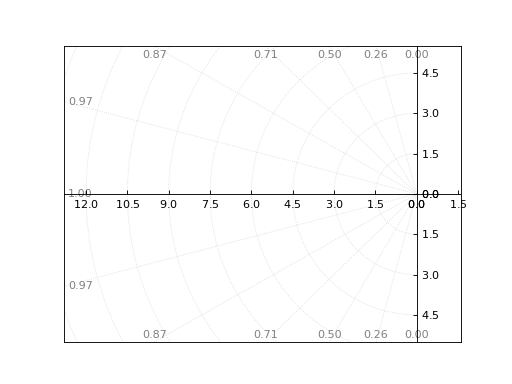

../../_images/control-35.png

Interactive-widgets plot of custom s-grid lines:

from sympy import symbols
from spb import *
xi, wn, Tp, Ts = symbols("xi omega_n T_p T_s")
params = {
    xi: (0.85, 0, 1),
    wn: (6.5, 2, 8),
    Tp: (1, 0.2, 4),
    Ts: (1, 0.2, 4),
}
graphics(
    sgrid(auto=True),
    sgrid(xi=xi, wn=False, params=params,
        rendering_kw={"color": "r", "linestyle": "-"},
        show_control_axis=False),
    sgrid(xi=False, wn=wn, params=params,
        rendering_kw={"color": "g", "linestyle": "-"},
        show_control_axis=False),
    sgrid(xi=False, wn=False, tp=Tp, params=params,
        rendering_kw={"color": "b", "linestyle": "-"},
        show_control_axis=False),
    sgrid(xi=False, wn=False, ts=Ts, params=params,
        rendering_kw={"color": "m", "linestyle": "-"},
        show_control_axis=False),
    grid=False, xlim=(-8.5, 1), ylim=(-5, 5))

(Source code, small.png)

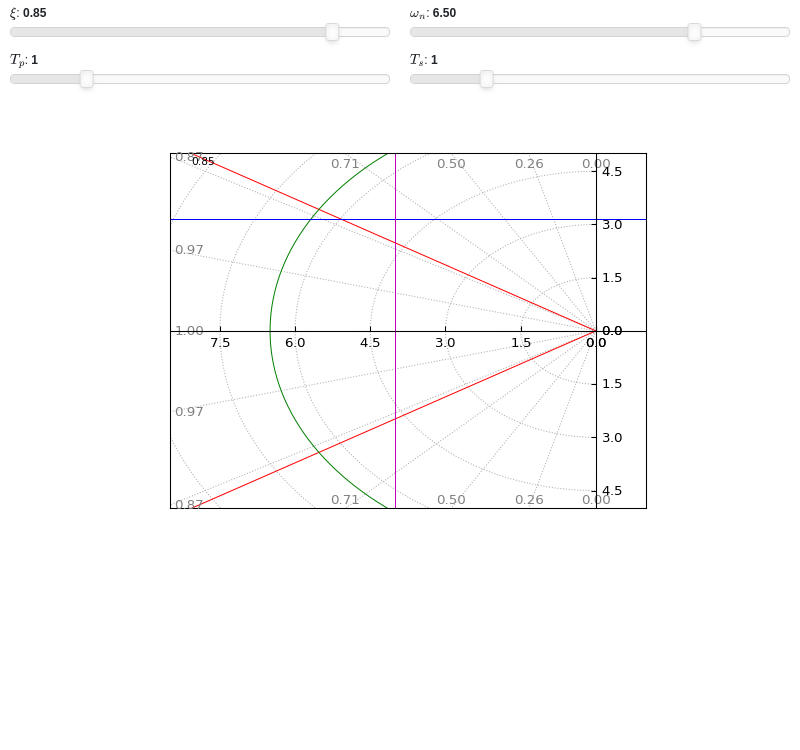

../../_images/control-36.small.png
spb.graphics.control.zgrid(xi=None, wn=None, tp=None, ts=None, T=None, show_control_axis=True, rendering_kw=None, **kwargs)[source]

Create the s-grid of constant damping ratios and natural frequencies.

Parameters:
xilist

List of damping values where to draw a grid line.

wnlist

List of natural frequencies where to draw a grid line.

tplist

List of peak times where to draw a grid line.

tslist

List of settling times where to draw a grid line.

Tfloat

Sampling period. Default value: None.

show_control_axisbool

Shows an horizontal and vertical grid lines crossing at the origin. Default value: True.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

autobool

If True, automatically compute damping ratio and natural frequencies in order to obtain an “evenly” distributed grid. Default value: True.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

xlimtuple

Axis limits along the x-direction.

ylimtuple

Axis limits along the x-direction.

See also

sgrid, pole_zero, root_locus

Examples

Shows the default grid lines, as well as a custom damping ratio line and natural frequency line.

from spb import *
graphics(
    zgrid(),
    zgrid(xi=0.05, wn=False, rendering_kw={"color": "r", "linestyle": "-"}),
    zgrid(xi=False, wn=0.25, rendering_kw={"color": "b", "linestyle": "-"}),
    grid=False, aspect="equal", xlim=(-1.2, 1.2), ylim=(-1.2, 1.2))

(Source code, png)

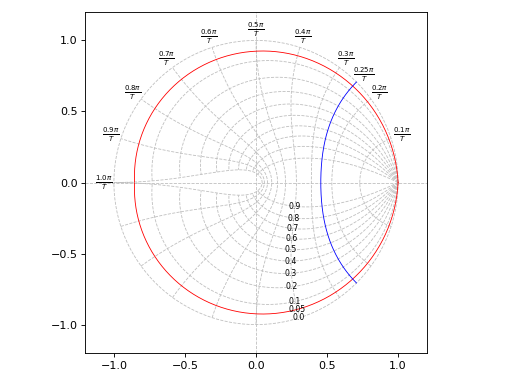

../../_images/control-37.png

Shows a grid of settling times and peak times:

graphics(
    zgrid(xi=False, wn=False, tp=[3, 5, 7, 10, 20], ts=[2, 3, 5, 10, 20]),
    zgrid(xi=False, wn=False, tp=4, rendering_kw={"color": "r"}),
    zgrid(xi=False, wn=False, ts=7, rendering_kw={"color": "b"}),
    grid=False, aspect="equal", xlim=(-1.2, 1.2), ylim=(-1.2, 1.2))

(Source code, png)

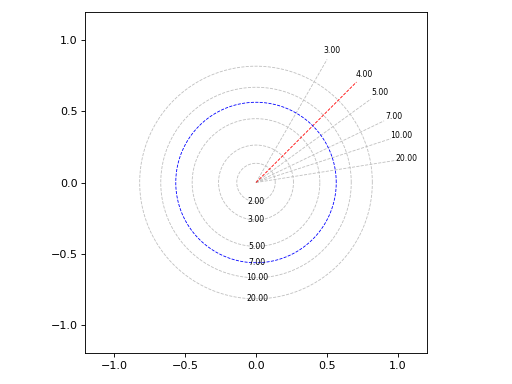

../../_images/control-38.png

Interactive-widgets plot of z-grid lines:

from sympy import symbols
from spb import *
xi, wn, Tp, Ts = symbols("xi, omega_n, T_p, T_s")
graphics(
    zgrid(),
    zgrid(xi=xi, wn=False, rendering_kw={"color": "r", "linestyle": "-"}, params={xi: (0.05, 0, 1)}),
    zgrid(wn=wn, xi=False, rendering_kw={"color": "g", "linestyle": "-"}, params={wn: (0.45, 0, 1)}),
    zgrid(wn=False, xi=False, tp=Tp, rendering_kw={"color": "b", "linestyle": "-"}, params={Tp: (3, 0, 20)}),
    zgrid(wn=False, xi=False, ts=Ts, rendering_kw={"color": "m", "linestyle": "-"}, params={Ts: (5, 0, 20)}),
    grid=False, aspect="equal", xlabel="Real", ylabel="Imaginary")

(Source code, small.png)

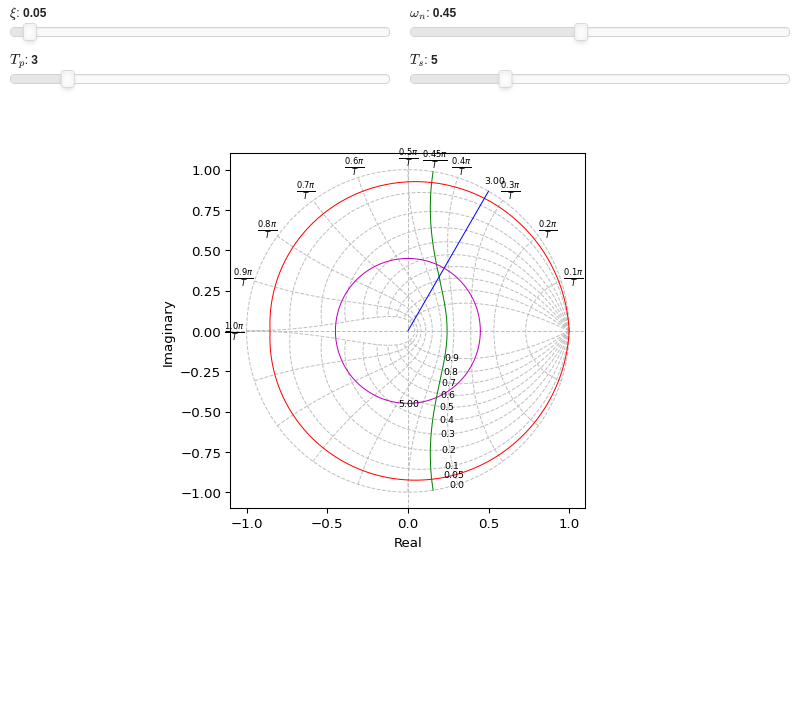

../../_images/control-39.small.png
spb.graphics.control.root_locus(system, label=None, rendering_kw=None, rl_kw={}, sgrid=True, zgrid=False, input=None, output=None, **kwargs)[source]

Root Locus plot for a system.

Parameters:
systemLTI system type

The system for which the pole-zero plot is to be computed. It can be:

labelstr

Set the label associated to this series, which will be eventually shown on the legend or colorbar.

rendering_kwdict

A dictionary of keyword arguments to be passed to the renderers in order to further customize the appearance of the line. Here are some useful links for the supported plotting libraries:

sgridbool, optional

Generates a grid of constant damping ratios and natural frequencies on the s-plane. Default to True.

zgridbool, optional

Generates a grid of constant damping ratios and natural frequencies on the z-plane. Default to False. If zgrid=True, then it will automatically sets sgrid=False.

inputint, optional

Only compute the poles/zeros for the listed input. If not specified, the poles/zeros for each independent input are computed (as separate traces).

outputint, optional

Only compute the poles/zeros for the listed output. If not specified, all outputs are reported.

colorbar_ticks_formattertick_formatter_multiples_of

An object of type tick_formatter_multiples_of which will be used to place tick values on the colorbar at each multiple of a specified quantity. This only works when use_cm=True.

control_kwdict

A dictionary of keyword arguments to be passed to control.root_locus_map().

is_filledbool

Whether scatter’s markers are filled or void. Default value: True.

is_scatterbool

If True it represent a scatter plot, otherwise a continuous line. Default value: False.

paramsdict, optional

A dictionary mapping symbols to parameters. If provided, this dictionary enables the interactive-widgets plot.

When calling a plotting function, the parameter can be specified with:

  • a widget from the ipywidgets module.

  • a widget from the panel module.

  • a tuple of the form:

    (default, min, max, N, tick_format, label, spacing), which will instantiate a ipywidgets.widgets.widget_float.FloatSlider or a ipywidgets.widgets.widget_float.FloatLogSlider, depending on the spacing strategy. In particular:

    • default, min, maxfloat

      Default value, minimum value and maximum value of the slider, respectively. Must be finite numbers. The order of these 3 numbers is not important: the module will figure it out which is what.

    • Nint, optional

      Number of steps of the slider.

    • tick_formatstr or None, optional

      Provide a formatter for the tick value of the slider. Default to ".2f".

    • label: str, optional

      Custom text associated to the slider.

    • spacingstr, optional

      Specify the discretization spacing. Default to "linear", can be changed to "log".

Notes:

  1. parameters cannot be linked together (ie, one parameter cannot depend on another one).

  2. If a widget returns multiple numerical values (like panel.widgets.slider.RangeSlider or ipywidgets.widgets.widget_float.FloatRangeSlider), then a corresponding number of symbols must be provided.

Here follows a couple of examples. If imodule="panel":

import panel as pn
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: pn.widgets.FloatSlider(value=1, start=0, end=5), # same slider as above
    (c, d): pn.widgets.RangeSlider(value=(-1, 1), start=-3, end=3, step=0.1)
}

Or with imodule="ipywidgets":

import ipywidgets as w
params = {
    a: (1, 0, 5), # slider from 0 to 5, with default value of 1
    b: w.FloatSlider(value=1, min=0, max=5), # same slider as above
    (c, d): w.FloatRangeSlider(value=(-1, 1), min=-3, max=3, step=0.1)
}

When instantiating a data series directly, params must be a dictionary mapping symbols to numerical values.

Let series be any data series. Then series.params returns a dictionary mapping symbols to numerical values.

show_in_legendbool

Toggle the visibility of the data series on the legend. Default value: True.

stepsNoneType, bool, str

If set, it connects consecutive points with steps rather than straight segments. Possible options: [‘pre’, ‘post’, ‘mid’, True, False, None] Default value: False.

txcallable

Numerical transformation function to be applied to the data on the x-axis.

tycallable

Numerical transformation function to be applied to the data on the y-axis.

unwrapbool, dict

Whether to use numpy.unwrap() on the computed coordinates in order to get rid of discontinuities. It can be:

  • False: do not use np.unwrap().

  • True: use np.unwrap() with default keyword arguments.

  • dictionary of keyword arguments passed to np.unwrap().

Returns:
A list containing:
  • one instance of SGridLineSeries if sgrid=True.
  • one instance of ZGridLineSeries if zgrid=True.
  • one or more instances of RootLocusSeries.

See also

sgrid, zgrid, pole_zero

Examples

Plot the root locus of a system on the s-plane, also showing a custom damping ratio line.

from sympy.abc import s, z
from spb import *
G = (s**2 - 4) / (s**3 + 2*s - 3)
graphics(
    root_locus(G),
    sgrid(xi=0.92, wn=False, rendering_kw={"color": "r"}),
    grid=False, xlabel="Real", ylabel="Imaginary")

(Source code, png)

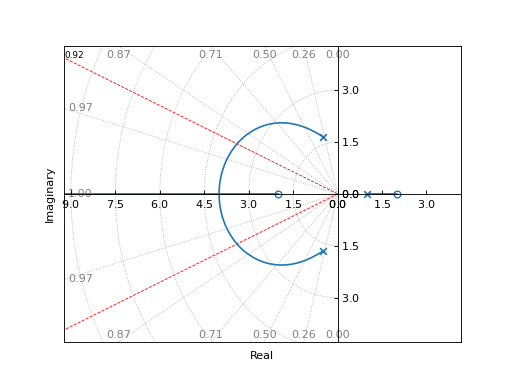

../../_images/control-40.png

Plot the root locus of a discrete system on the z-plane:

G = (0.038*z + 0.031) / (9.11*z**2 - 13.77*z + 5.0)
graphics(
    root_locus(G, sgrid=False, aspect="equal"),
    zgrid(T=0.2),
    grid=False, xlabel="Real", ylabel="Imaginary")

(Source code, png)

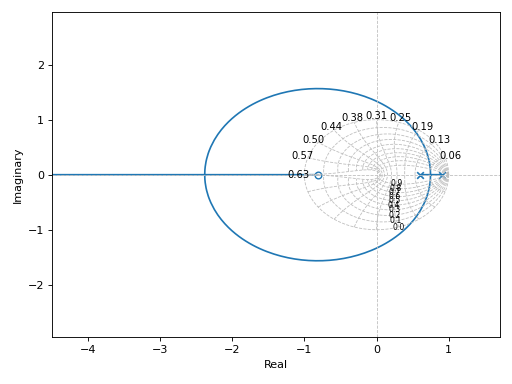

../../_images/control-41.png

Interactive-widgets root locus plot:

from sympy import symbols
from spb import *
a, s, xi = symbols("a, s, xi")
G = (s**2 + a) / (s**3 + 2*s**2 + 3*s + 4)
params={a: (-0.5, -4, 4), xi: (0.8, 0, 1)}
graphics(
    sgrid(xi, wn=False, params=params, rendering_kw={"color": "r"}),
    root_locus(G, params=params),
    grid=False, xlim=(-4, 1), ylim=(-2.5, 2.5),
    xlabel="Real", ylabel="Imaginary")

(Source code, small.png)

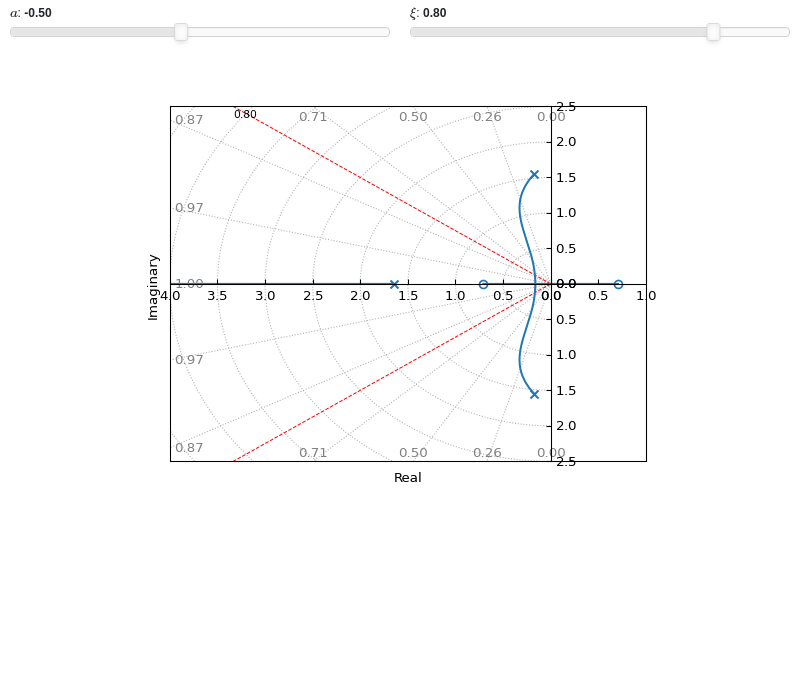

../../_images/control-42.small.png
