3D general plotting

NOTE: For technical reasons, all interactive-widgets plots in this documentation are created using Holoviz’s Panel. Often, they will ran just fine with ipywidgets too. However, if a specific example uses the param library, or widgets from the panel module, then users will have to modify the params dictionary in order to make it work with ipywidgets. Refer to Interactive module for more information.

spb.plot_functions.functions_3d.plot3d(*args, **kwargs)[source]

Plots a 3D surface plot.

Typical usage examples are in the followings:

  • Plotting a single expression:

    plot3d(expr, range_x, range_y, **kwargs)

  • Plotting multiple expressions with the same ranges:

    plot3d(expr1, expr2, range_x, range_y, **kwargs)

  • Plotting multiple expressions with different ranges, custom labels and rendering options:

    plot3d(
   (expr1, range_x1, range_y1, label1 [opt], rendering_kw1 [opt]),
   (expr2, range_x2, range_y2, label2 [opt], rendering_kw2 [opt]),
   ..., **kwargs)

Note: it is important to specify at least the range_x, otherwise the function might create a rotated plot.

Refer to surface() for a full list of keyword arguments to customize the appearances of surfaces.

Refer to graphics() for a full list of keyword arguments to customize the appearances of the figure (title, axis labels, …).

Parameters:
labelstr or list/tuple, optional

The label to be shown in the legend. If not provided, the string representation of expr will be used. The number of labels must be equal to the number of expressions.

rendering_kwdict or list of dicts, optional

A dictionary of keywords/values which is passed to the backend’s function to customize the appearance of lines. Refer to the plotting library (backend) manual for more informations. If a list of dictionaries is provided, the number of dictionaries must be equal to the number of expressions.

See also

plot3d_parametric_list, plot3d_parametric_surface, plot3d_spherical
plot3d_revolution, plot3d_implicit, plot3d_list, plot_contour

Examples

>>> from sympy import symbols, cos, sin, pi, exp
>>> from spb import plot3d
>>> x, y = symbols('x y')

(Source code)

Single plot with Matplotlib:

>>> plot3d(cos((x**2 + y**2)), (x, -3, 3), (y, -3, 3))
Plot object containing:
[0]: cartesian surface: cos(x**2 + y**2) for x over (-3.0, 3.0) and y over (-3.0, 3.0)

(Source code, png)

../../_images/functions_3d-21.png

Single plot with Plotly, illustrating how to apply:

  • a color map: by default, it will map colors to the z values.

  • wireframe lines to better understand the discretization and curvature.

  • transformation to the discretized ranges in order to convert radians to degrees.

  • custom aspect ratio with Plotly.

from sympy import symbols, sin, cos, pi
from spb import plot3d, PB
import numpy as np
x, y = symbols("x, y")
expr = (cos(x) + sin(x) * sin(y) - sin(x) * cos(y))**2
plot3d(
    expr, (x, 0, pi), (y, 0, 2 * pi), backend=PB, use_cm=True,
    tx=np.rad2deg, ty=np.rad2deg, wireframe=True, wf_n1=20, wf_n2=20,
    xlabel="x [deg]", ylabel="y [deg]",
    aspect=dict(x=1.5, y=1.5, z=0.5))

(Source code, png)

Multiple plots with same range using color maps. By default, colors are mapped to the z values:

>>> plot3d(x*y, -x*y, (x, -5, 5), (y, -5, 5), use_cm=True)
Plot object containing:
[0]: cartesian surface: x*y for x over (-5.0, 5.0) and y over (-5.0, 5.0)
[1]: cartesian surface: -x*y for x over (-5.0, 5.0) and y over (-5.0, 5.0)

(Source code, png)

../../_images/functions_3d-41.png

Multiple plots with different ranges and solid colors.

>>> f = x**2 + y**2
>>> plot3d((f, (x, -3, 3), (y, -3, 3)),
...     (-f, (x, -5, 5), (y, -5, 5)))
Plot object containing:
[0]: cartesian surface: x**2 + y**2 for x over (-3.0, 3.0) and y over (-3.0, 3.0)
[1]: cartesian surface: -x**2 - y**2 for x over (-5.0, 5.0) and y over (-5.0, 5.0)

(Source code, png)

../../_images/functions_3d-5.png

Single plot with a polar discretization, a color function mapping a colormap to the radius. Note that the same result can be achieved with plot3d_revolution.

from sympy import *
from spb import *
import numpy as np
r, theta = symbols("r, theta")
expr = cos(r**2) * exp(-r / 3)
plot3d(expr, (r, 0, 5), (theta, 1.6 * pi, 2 * pi),
    backend=KB, is_polar=True, legend=True, grid=False,
    use_cm=True, color_func=lambda x, y, z: np.sqrt(x**2 + y**2),
    wireframe=True, wf_n1=30, wf_n2=10,
    wf_rendering_kw={"width": 0.005})

(Source code, small.png)

../../_images/functions_3d-6.small1.png

Plotting a numerical function instead of a symbolic expression:

>>> plot3d(lambda x, y: x * np.exp(-x**2 - y**2),
...     ("x", -3, 3), ("y", -3, 3), use_cm=True)

(Source code, png)

../../_images/functions_3d-7.png

Interactive-widget plot. Refer to the interactive sub-module documentation to learn more about the params dictionary. This plot illustrates:

  • the use of prange (parametric plotting range).

  • the use of the params dictionary to specify sliders in their basic form: (default, min, max).

  • the use of panel.widgets.slider.RangeSlider, which is a 2-values widget.

from sympy import *
from spb import *
import panel as pn
x, y, a, b, c, d, e = symbols("x y a b c d e")
plot3d(
    cos(x**2 + y**2) * exp(-(x**2 + y**2) * a),
    prange(x, b, c), prange(y, d, e),
    params={
        a: (0.25, 0, 1),
        (b, c): pn.widgets.RangeSlider(
            value=(-2, 2), start=-4, end=4, step=0.1),
        (d, e): pn.widgets.RangeSlider(
            value=(-2, 2), start=-4, end=4, step=0.1),
    },
    backend=PB, use_cm=True, n=100, aspect=dict(x=1.5, y=1.5, z=0.75),
    wireframe=True, wf_n1=15, wf_n2=15, throttled=True)

(Source code, small.png)

../../_images/functions_3d-8.small.png
spb.plot_functions.functions_3d.plot3d_parametric_line(*args, **kwargs)[source]

Plots a 3D parametric line plot.

Typical usage examples are in the followings:

  • Plotting a single expression:

    plot3d_parametric_line(expr_x, expr_y, expr_z, range, **kwargs)

  • Plotting a single expression with a custom label and rendering options:

    plot3d_parametric_line(expr_x, expr_y, expr_z, range,
   label [opt], rendering_kw [opt], **kwargs)

  • Plotting multiple expressions with the same ranges:

    plot3d_parametric_line((expr_x1, expr_y1, expr_z1),
   (expr_x2, expr_y2, expr_z2), ..., range, **kwargs)

  • Plotting multiple expressions with different ranges, custom labels and rendering options:

    plot3d_parametric_line(
   (expr_x1, expr_y1, expr_z1, range1, label1, rendering_kw1),
   (expr_x2, expr_y2, expr_z2, range2, label1, rendering_kw2),
   ..., **kwargs)

Refer to line_parametric_3d() for a full list of keyword arguments to customize the appearances of lines.

Refer to graphics() for a full list of keyword arguments to customize the appearances of the figure (title, axis labels, …).

See also

plot3d, plot3d_parametric_surface, plot3d_spherical
plot3d_revolution, plot3d_implicit, plot3d_list

Examples

>>> from sympy import symbols, cos, sin, pi, root
>>> from spb import plot3d_parametric_line
>>> t = symbols('t')

(Source code)

Single plot.

>>> plot3d_parametric_line(cos(t), sin(t), t, (t, -5, 5))
Plot object containing:
[0]: 3D parametric cartesian line: (cos(t), sin(t), t) for t over (-5.0, 5.0)

(Source code, png)

../../_images/functions_3d-10.png

Customize the appearance by setting a label to the colorbar, changing the colormap and the line width.

>>> plot3d_parametric_line(
...     3 * sin(t) + 2 * sin(3 * t), cos(t) - 2 * cos(3 * t), cos(5 * t),
...     (t, 0, 2 * pi), "t [rad]", {"cmap": "hsv", "lw": 1.5},
...     aspect="equal")
Plot object containing:
[0]: 3D parametric cartesian line: (3*sin(t) + 2*sin(3*t), cos(t) - 2*cos(3*t), cos(5*t)) for t over (0.0, 6.283185307179586)

(Source code, png)

../../_images/functions_3d-11.png

Plot multiple parametric 3D lines with different ranges:

>>> a, b, n = 2, 1, 4
>>> p, r, s = symbols("p r s")
>>> xp = a * cos(p) * cos(n * p)
>>> yp = a * sin(p) * cos(n * p)
>>> zp = b * cos(n * p)**2 + pi
>>> xr = root(r, 3) * cos(r)
>>> yr = root(r, 3) * sin(r)
>>> zr = 0
>>> plot3d_parametric_line(
...     (xp, yp, zp, (p, 0, pi if n % 2 == 1 else 2 * pi), "petals"),
...     (xr, yr, zr, (r, 0, 6*pi), "roots"),
...     (-sin(s)/3, 0, s, (s, 0, pi), "stem"), use_cm=False)
Plot object containing:
[0]: 3D parametric cartesian line: (2*cos(p)*cos(4*p), 2*sin(p)*cos(4*p), cos(4*p)**2 + pi) for p over (0.0, 6.283185307179586)
[1]: 3D parametric cartesian line: (r**(1/3)*cos(r), r**(1/3)*sin(r), 0) for r over (0.0, 18.84955592153876)
[2]: 3D parametric cartesian line: (-sin(s)/3, 0, s) for s over (0.0, 3.141592653589793)

(Source code, png)

../../_images/functions_3d-121.png

Plotting a numerical function instead of a symbolic expression, using Plotly:

from spb import plot3d_parametric_line, PB
import numpy as np
fx = lambda t: (1 + 0.25 * np.cos(75 * t)) * np.cos(t)
fy = lambda t: (1 + 0.25 * np.cos(75 * t)) * np.sin(t)
fz = lambda t: t + 2 * np.sin(75 * t)
plot3d_parametric_line(fx, fy, fz, ("t", 0, 6 * np.pi),
    {"line": {"colorscale": "bluered"}},
    title="Helical Toroid", backend=PB, adaptive=False, n=1e04)

(Source code, png)

Interactive-widget plot of the parametric line over a tennis ball. Refer to the interactive sub-module documentation to learn more about the params dictionary. This plot illustrates:

  • combining together different plots.

  • the use of prange (parametric plotting range).

  • the use of the params dictionary to specify sliders in their basic form: (default, min, max).

from sympy import *
from spb import *
import k3d
a, b, s, e, t = symbols("a, b, s, e, t")
c = 2 * sqrt(a * b)
r = a + b
params = {
    a: (1.5, 0, 2),
    b: (1, 0, 2),
    s: (0, 0, 2),
    e: (2, 0, 2)
}
sphere = plot3d_revolution(
    (r * cos(t), r * sin(t)), (t, 0, pi),
    params=params, n=50, parallel_axis="x",
    backend=KB,
    show_curve=False, show=False,
    rendering_kw={"color":0x353535})
line = plot3d_parametric_line(
    a * cos(t) + b * cos(3 * t),
    a * sin(t) - b * sin(3 * t),
    c * sin(2 * t), prange(t, s*pi, e*pi),
    {"color_map": k3d.matplotlib_color_maps.Summer}, params=params,
    backend=KB, show=False)
(line + sphere).show()

(Source code, small.png)

../../_images/functions_3d-14.small.png
spb.plot_functions.functions_3d.plot3d_parametric_surface(*args, **kwargs)[source]

Plots a 3D parametric surface plot.

Typical usage examples are in the followings:

  • Plotting a single expression:

    plot3d_parametric_surface(
       expr_x, expr_y, expr_z, range_u, range_v, label, **kwargs)

  • Plotting multiple expressions with the same ranges:

    plot3d_parametric_surface((expr_x1, expr_y1, expr_z1),
   (expr_x2, expr_y2, expr_z2), range_u, range_v, **kwargs)

  • Plotting multiple expressions with different ranges, custom labels and rendering option:

    plot3d_parametric_surface(
   (expr_x1, expr_y1, expr_z1, range_u1, range_v1,
       label1 [opt], rendering_kw1 [opt]),
   (expr_x2, expr_y2, expr_z2, range_u2, range_v2,
       label2 [opt], rendering_kw2 [opt]), **kwargs)`

Note: it is important to specify both the ranges.

Refer to surface_parametric() for a full list of keyword arguments to customize the appearances of surfaces.

Refer to graphics() for a full list of keyword arguments to customize the appearances of the figure (title, axis labels, …).

Parameters:
labelstr or list/tuple, optional

The label to be shown in the legend. If not provided, the string representation of expr will be used. The number of labels must be equal to the number of expressions.

rendering_kwdict or list of dicts, optional

A dictionary of keywords/values which is passed to the backend’s function to customize the appearance of lines. Refer to the plotting library (backend) manual for more informations. If a list of dictionaries is provided, the number of dictionaries must be equal to the number of expressions.

See also

plot3d, plot3d_parametric_list, plot3d_spherical
plot3d_revolution, plot3d_implicit, plot3d_list

Examples

>>> from sympy import symbols, cos, sin, pi, I, sqrt, atan2, re, im
>>> from spb import plot3d_parametric_surface
>>> u, v = symbols('u v')

(Source code)

Plot a parametric surface:

>>> plot3d_parametric_surface(
...     u * cos(v), u * sin(v), u * cos(4 * v) / 2,
...     (u, 0, pi), (v, 0, 2*pi),
...     use_cm=False, title="Sinusoidal Cone")
Plot object containing:
[0]: parametric cartesian surface: (u*cos(v), u*sin(v), u*cos(4*v)/2) for u over (0.0, 3.141592653589793) and v over (0.0, 6.283185307179586)

(Source code, png)

../../_images/functions_3d-16.png

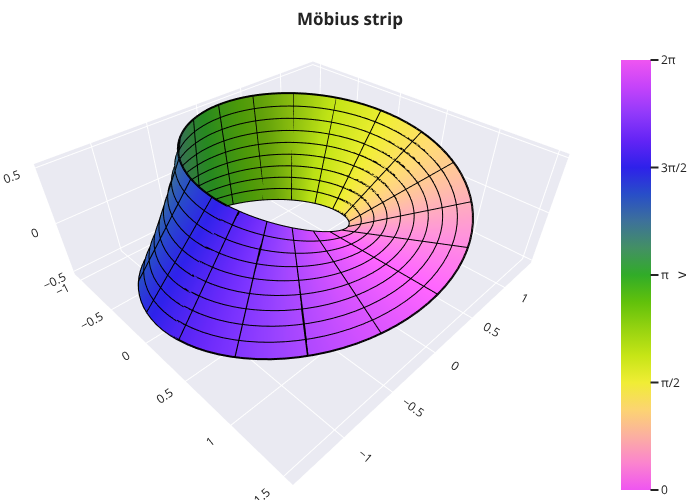

Customize the appearance of the surface by changing the colormap. Apply a color function mapping the v values. Activate the wireframe to better visualize the parameterization.

from sympy import *
from spb import *
import k3d
var("u, v")

x = (1 + v / 2 * cos(u / 2)) * cos(u)
y = (1 + v / 2 * cos(u / 2)) * sin(u)
z = v / 2 * sin(u / 2)
plot3d_parametric_surface(
    x, y, z, (u, 0, 2*pi), (v, -1, 1),
    "v", {"color_map": k3d.colormaps.paraview_color_maps.Hue_L60},
    backend=KB,
    use_cm=True, color_func=lambda u, v: u,
    title=r"Möbius \, strip",
    wireframe=True, wf_n1=20, wf_rendering_kw={"width": 0.004})

(Source code, small.png)

../../_images/functions_3d-17.small.png

Riemann surfaces of the real part of the multivalued function z**n, using Plotly:

from sympy import symbols, sqrt, re, im, pi, atan2, sin, cos, I
from spb import plot3d_parametric_surface, PB
r, theta, x, y = symbols("r, theta, x, y", real=True)
mag = lambda z: sqrt(re(z)**2 + im(z)**2)
phase = lambda z, k=0: atan2(im(z), re(z)) + 2 * k * pi
n = 2 # exponent (integer)
z = x + I * y # cartesian
d = {x: r * cos(theta), y: r * sin(theta)} # cartesian to polar
branches = [(mag(z)**(1 / n) * cos(phase(z, i) / n)).subs(d)
    for i in range(n)]
exprs = [(r * cos(theta), r * sin(theta), rb) for rb in branches]
plot3d_parametric_surface(*exprs, (r, 0, 3), (theta, -pi, pi),
    backend=PB, wireframe=True, wf_n2=20, zlabel="f(z)",
    label=["branch %s" % (i + 1) for i in range(len(branches))])

(Source code, png)

Plotting a numerical function instead of a symbolic expression.

from spb import *
import numpy as np
fx = lambda u, v: (4 + np.cos(u)) * np.cos(v)
fy = lambda u, v: (4 + np.cos(u)) * np.sin(v)
fz = lambda u, v: np.sin(u)
plot3d_parametric_surface(fx, fy, fz, ("u", 0, 2 * np.pi),
    ("v", 0, 2 * np.pi), zlim=(-2.5, 2.5), title="Torus",
    backend=KB, grid=False)

(Source code, small.png)

../../_images/functions_3d-19.small.png

Interactive-widget plot. Refer to the interactive sub-module documentation to learn more about the params dictionary. This plot illustrates:

  • the use of prange (parametric plotting range).

  • the use of the params dictionary to specify sliders in their basic form: (default, min, max).

from sympy import *
from spb import *
import k3d
alpha, u, v, up, vp = symbols("alpha u v u_p v_p")
plot3d_parametric_surface((
        exp(u) * cos(v - alpha) / 2 + exp(-u) * cos(v + alpha) / 2,
        exp(u) * sin(v - alpha) / 2 + exp(-u) * sin(v + alpha) / 2,
        cos(alpha) * u + sin(alpha) * v
    ),
    prange(u, -up, up), prange(v, 0, vp * pi),
    backend=KB,
    use_cm=True,
    color_func=lambda u, v: v,
    rendering_kw={"color_map": k3d.colormaps.paraview_color_maps.Hue_L60},
    wireframe=True, wf_n2=15, wf_rendering_kw={"width": 0.005},
    grid=False, n=50,
    params={
        alpha: (0, 0, pi),
        up: (1, 0, 2),
        vp: (2, 0, 2),
    },
    title=r"Catenoid \, to \, Right \, Helicoid \, Transformation")

(Source code, small.png)

../../_images/functions_3d-20.small.png

Interactive-widget plot. Refer to the interactive sub-module documentation to learn more about the params dictionary. Note that the plot’s creation might be slow due to the wireframe lines.

from sympy import *
from spb import *
import panel as pn
n, u, v = symbols("n, u, v")
x = v * cos(u)
y = v * sin(u)
z = sin(n * u)
plot3d_parametric_surface(
    (x, y, z, (u, 0, 2*pi), (v, -1, 0)),
    params = {
        n: pn.widgets.IntInput(value=3, name="n")
    },
    backend=KB,
    use_cm=True,
    title=r"Plücker's \, conoid",
    wireframe=True,
    wf_rendering_kw={"width": 0.004},
    wf_n1=75, wf_n2=6, imodule="panel"
)

(Source code, small.png)

../../_images/functions_3d-21.small1.png
spb.plot_functions.functions_3d.plot3d_spherical(*args, **kwargs)[source]

Plots a radius as a function of the spherical coordinates theta and phi.

Typical usage examples are in the followings:

  • Plotting a single expression.:

    plot3d_spherical(r, range_theta, range_phi, **kwargs)

  • Plotting multiple expressions with the same ranges.:

    plot3d_spherical(r1, r2, range_theta, range_phi, **kwargs)

  • Plotting multiple expressions with different ranges, custom labels and rendering options:

    plot3d_spherical(
   (r1, range_theta1, range_phi1, label1 [opt], rendering_kw1 [opt]),
   (r2, range_theta2, range_phi2, label2 [opt], rendering_kw2 [opt]),
   ..., **kwargs)

Note: it is important to specify both the ranges.

Refer to surface_spherical() for a full list of keyword arguments to customize the appearances of surfaces.

Refer to graphics() for a full list of keyword arguments to customize the appearances of the figure (title, axis labels, …).

Parameters:
labelstr or list/tuple, optional

The label to be shown in the legend. If not provided, the string representation of expr will be used. The number of labels must be equal to the number of expressions.

rendering_kwdict or list of dicts, optional

A dictionary of keywords/values which is passed to the backend’s function to customize the appearance of lines. Refer to the plotting library (backend) manual for more informations. If a list of dictionaries is provided, the number of dictionaries must be equal to the number of expressions.

See also

plot3d, plot3d_parametric_list, plot3d_parametric_surface
plot3d_revolution, plot3d_implicit, plot3d_list

Examples

>>> from sympy import symbols, cos, sin, pi, Ynm, re, lambdify
>>> from spb import plot3d_spherical
>>> theta, phi = symbols('theta phi')

(Source code)

Sphere cap:

>>> plot3d_spherical(1, (theta, 0, 0.7 * pi), (phi, 0, 1.8 * pi))
Plot object containing:
[0]: parametric cartesian surface: (sin(theta)*cos(phi), sin(phi)*sin(theta), cos(theta)) for theta over (0.0, 2.199114857512855) and phi over (0.0, 5.654866776461628)

(Source code, png)

../../_images/functions_3d-23.png

Plot real spherical harmonics, highlighting the regions in which the real part is positive and negative, using Plotly:

from sympy import symbols, sin, pi, Ynm, re, lambdify
from spb import plot3d_spherical, PB
theta, phi = symbols('theta phi')
r = re(Ynm(3, 3, theta, phi).expand(func=True).rewrite(sin).expand())
plot3d_spherical(
    abs(r), (theta, 0, pi), (phi, 0, 2 * pi), "radius",
    use_cm=True, n2=200, backend=PB,
    color_func=lambdify([theta, phi], r))

(Source code, png)

Multiple surfaces with wireframe lines, using Plotly. Note that activating the wireframe option might add a considerable overhead during the plot’s creation.

from sympy import symbols, sin, pi
from spb import plot3d_spherical, PB
theta, phi = symbols('theta phi')
r1 = 1
r2 = 1.5 + sin(5 * phi) * sin(10 * theta) / 10
plot3d_spherical(r1, r2, (theta, 0, pi / 2), (phi, 0.35 * pi, 2 * pi),
    wireframe=True, wf_n2=25, backend=PB, label=["r1", "r2"])

(Source code, png)

Interactive-widget plot of real spherical harmonics, highlighting the regions in which the real part is positive and negative. Note that the plot’s creation and update might be slow and that it must be m < n at all times. Refer to the interactive sub-module documentation to learn more about the params dictionary.

from sympy import *
from spb import *
import panel as pn
n, m = symbols("n, m")
phi, theta = symbols("phi, theta", real=True)
r = re(Ynm(n, m, theta, phi).expand(func=True).rewrite(sin).expand())
plot3d_spherical(
    abs(r), (theta, 0, pi), (phi, 0, 2*pi),
    params = {
        n: pn.widgets.IntInput(value=2, name="n"),
        m: pn.widgets.IntInput(value=0, name="m"),
    },
    force_real_eval=True,
    use_cm=True, color_func=r,
    backend=KB, imodule="panel")

(Source code, small.png)

../../_images/functions_3d-26.small.png
spb.plot_functions.functions_3d.plot3d_revolution(curve, range_t, range_phi=None, axis=(0, 0), parallel_axis='z', show_curve=False, curve_kw={}, **kwargs)[source]

Generate a surface of revolution by rotating a curve around an axis of rotation.

Refer to surface_revolution() for a full list of keyword arguments to customize the appearances of surfaces.

Refer to graphics() for a full list of keyword arguments to customize the appearances of the figure (title, axis labels, …).

Parameters:
labelstr or list/tuple, optional

The label to be shown in the legend. If not provided, the string representation of expr will be used. The number of labels must be equal to the number of expressions.

rendering_kwdict or list of dicts, optional

A dictionary of keywords/values which is passed to the backend’s function to customize the appearance of lines. Refer to the plotting library (backend) manual for more informations. If a list of dictionaries is provided, the number of dictionaries must be equal to the number of expressions.

See also

plot3d, plot3d_parametric_list, plot3d_parametric_surface
plot3d_spherical, plot3d_implicit, plot3d_list

Examples

>>> from sympy import symbols, cos, sin, pi
>>> from spb import plot3d_revolution
>>> t, phi = symbols('t phi')

(Source code)

Revolve a function around the z axis:

>>> plot3d_revolution(
...     cos(t), (t, 0, pi),
...     # use a color map on the surface to indicate the azimuthal angle
...     use_cm=True, color_func=lambda t, phi: phi,
...     rendering_kw={"alpha": 0.6, "cmap": "twilight"},
...     # indicates the azimuthal angle on the colorbar label
...     label=r"$\phi$ [rad]",
...     show_curve=True,
...     # this dictionary will be passes to plot3d_parametric_line in
...     # order to draw the initial curve
...     curve_kw=dict(rendering_kw={"color": "r", "label": "cos(t)"}),
...     # activate the wireframe to visualize the parameterization
...     wireframe=True, wf_n1=15, wf_n2=15,
...     wf_rendering_kw={"lw": 0.5, "alpha": 0.75})

(Source code, png)

../../_images/functions_3d-28.png

Revolve the same function around an axis parallel to the x axis, using Plotly:

from sympy import symbols, cos, sin, pi
from spb import plot3d_revolution, PB
t, phi = symbols('t phi')
plot3d_revolution(
    cos(t), (t, 0, pi), parallel_axis="x", axis=(1, 0),
    backend=PB, use_cm=True, color_func=lambda t, phi: phi,
    rendering_kw={"colorscale": "twilight"},
    label="phi [rad]",
    show_curve=True,
    curve_kw=dict(rendering_kw={"line": {"color": "red", "width": 8},
        "name": "cos(t)"}),
    wireframe=True, wf_n1=15, wf_n2=15,
    wf_rendering_kw={"line_width": 1})

(Source code, png)

Revolve a 2D parametric circle around the z axis:

from sympy import *
from spb import *
t = symbols("t")
circle = (3 + cos(t), sin(t))
plot3d_revolution(circle, (t, 0, 2 * pi),
    backend=KB, show_curve=True,
    rendering_kw={"opacity": 0.65},
    curve_kw={"rendering_kw": {"width": 0.05}})

(Source code, small.png)

../../_images/functions_3d-30.small.png

Revolve a 3D parametric curve around the z axis for a given azimuthal angle, using Plotly:

plot3d_revolution(
    (cos(t), sin(t), t), (t, 0, 2*pi), (phi, 0, pi),
    use_cm=True, color_func=lambda t, phi: t, label="t [rad]",
    show_curve=True, backend=PB, aspect="cube",
    wireframe=True, wf_n1=2, wf_n2=5)

(Source code, png)

Interactive-widget plot of a goblet. Refer to the interactive sub-module documentation to learn more about the params dictionary. This plot illustrates:

  • the use of prange (parametric plotting range).

  • the use of the params dictionary to specify sliders in their basic form: (default, min, max).

from sympy import *
from spb import *
t, phi, u, v, w = symbols("t phi u v w")
plot3d_revolution(
    (t, cos(u * t), t**2), prange(t, 0, v), prange(phi, 0, w*pi),
    axis=(1, 0.2),
    params={
        u: (2.5, 0, 6),
        v: (2, 0, 3),
        w: (2, 0, 2)
    }, n=50, backend=KB, force_real_eval=True,
    wireframe=True, wf_n1=15, wf_n2=15,
    wf_rendering_kw={"width": 0.004},
    show_curve=True, curve_kw={"rendering_kw": {"width": 0.025}})

(Source code, small.png)

../../_images/functions_3d-32.small.png
spb.plot_functions.functions_3d.plot3d_implicit(*args, **kwargs)[source]

Plots an isosurface of a function.

Typical usage examples are in the followings:

  • Plotting a single expression:

    plot3d_implicit(
   expr, range_x, range_y, range_z, rendering_kw [optional], **kwargs)

  • Plotting a multiple expression over the same range:

    plot3d_implicit(
   expr1, expr2, range_x, range_y, range_z,
   rendering_kw [optional], **kwargs)`

  • Plotting a multiple expression with different range and rendering options:

    plot3d_implicit(
   (expr1, range_x1, range_y1, range_z1, rendering_kw1 [opt]),
   (expr2, range_x2, range_y2, range_z2, rendering_kw2 [opt]),
   **kwargs)`

Refer to implicit_3d() for a full list of keyword arguments to customize the appearances of surfaces.

Refer to graphics() for a full list of keyword arguments to customize the appearances of the figure (title, axis labels, …).

See also

plot3d, plot3d_parametric_list, plot3d_parametric_surface
plot3d_spherical, plot3d_revolution, plot3d_list

Notes

  1. the number of discretization points is crucial as the algorithm will discretize a volume. A high number of discretization points creates a smoother mesh, at the cost of a much higher memory consumption and slower computation.

  2. Only PlotlyBackend and K3DBackend support 3D implicit plotting.

  3. To plot f(x, y, z) = c either write expr = f(x, y, z) - c or pass the appropriate keyword to rendering_kw. Read the backends documentation to find out the available options.

Examples

from sympy import symbols
from spb import plot3d_implicit, PB, KB
x, y, z = symbols('x, y, z')
plot3d_implicit(
    x**2 + y**3 - z**2, (x, -2, 2), (y, -2, 2), (z, -2, 2), backend=PB)

(Source code, png)

plot3d_implicit(
    x**4 + y**4 + z**4 - (x**2 + y**2 + z**2 - 0.3),
    (x, -2, 2), (y, -2, 2), (z, -2, 2), backend=PB)

(Source code, png)

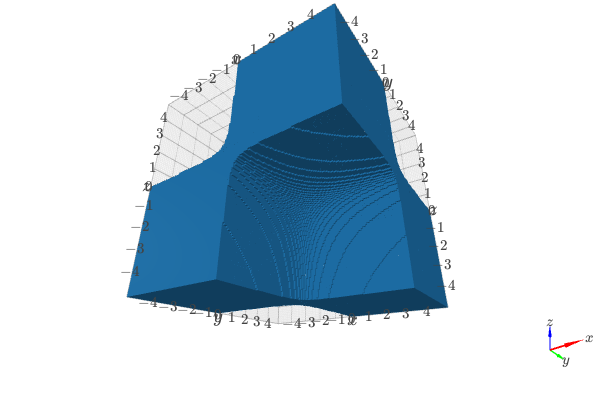

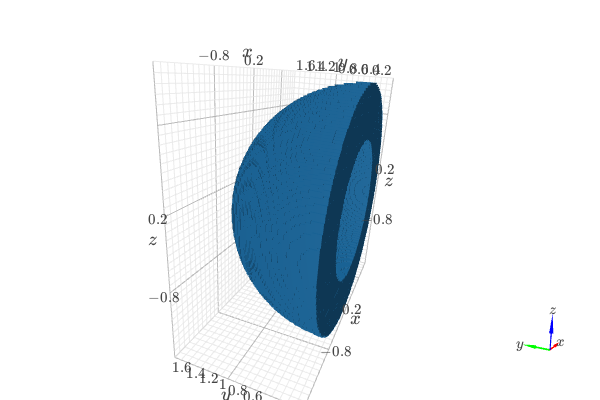

Visualize the isocontours from isomin=0 to isomax=2 by providing a rendering_kw dictionary:

plot3d_implicit(
    1/x**2 - 1/y**2 + 1/z**2, (x, -2, 2), (y, -2, 2), (z, -2, 2),
    {
        "isomin": 0, "isomax": 2,
        "colorscale":"aggrnyl", "showscale":True
    },
    backend=PB
)

(Source code, png)

spb.plot_functions.functions_3d.plot3d_list(*args, **kwargs)[source]

Plots lists of coordinates (ie, lists of numbers) in 3D space.

Typical usage examples are in the followings:

  • Plotting coordinates of a single function:

    plot3d_list(x, y, **kwargs)

  • Plotting coordinates of multiple functions, adding custom labels and rendering options:

    plot3d_list(
   (x1, y1, z1, label1 [opt], rendering_kw1 [opt]),
   (x2, y2, z1, label2 [opt], rendering_kw2 [opt]),
   ..., **kwargs)

Refer to list_3d() for a full list of keyword arguments to customize the appearances of lines.

Refer to graphics() for a full list of keyword arguments to customize the appearances of the figure (title, axis labels, …).

See also

plot3d, plot3d_parametric_list, plot3d_parametric_surface
plot3d_spherical, plot3d_revolution, plot3d_implicit

Examples

>>> from sympy import *
>>> from spb import plot3d_list
>>> import numpy as np

(Source code)

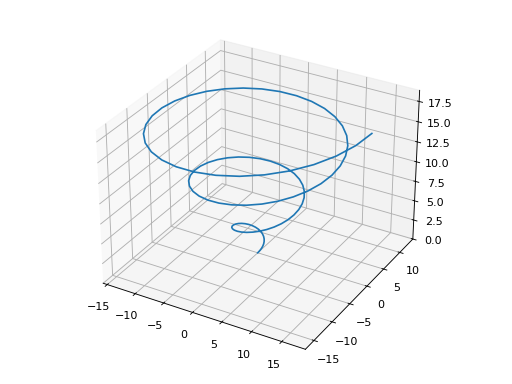

Plot the coordinates of a single function:

>>> z = np.linspace(0, 6*np.pi, 100)
>>> x = z * np.cos(z)
>>> y = z * np.sin(z)
>>> plot3d_list(x, y, z)
Plot object containing:
[0]: 3D list plot

(Source code, png)

../../_images/functions_3d-37.png

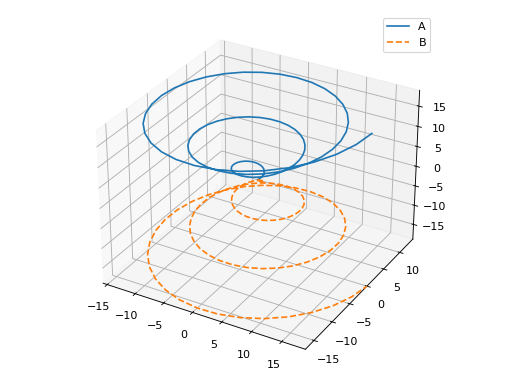

Plotting multiple functions with custom rendering keywords:

>>> plot3d_list(
...     (x, y, z, "A"),
...     (x, y, -z, "B", {"linestyle": "--"}))
Plot object containing:
[0]: 3D list plot
[1]: 3D list plot

(Source code, png)

../../_images/functions_3d-38.png

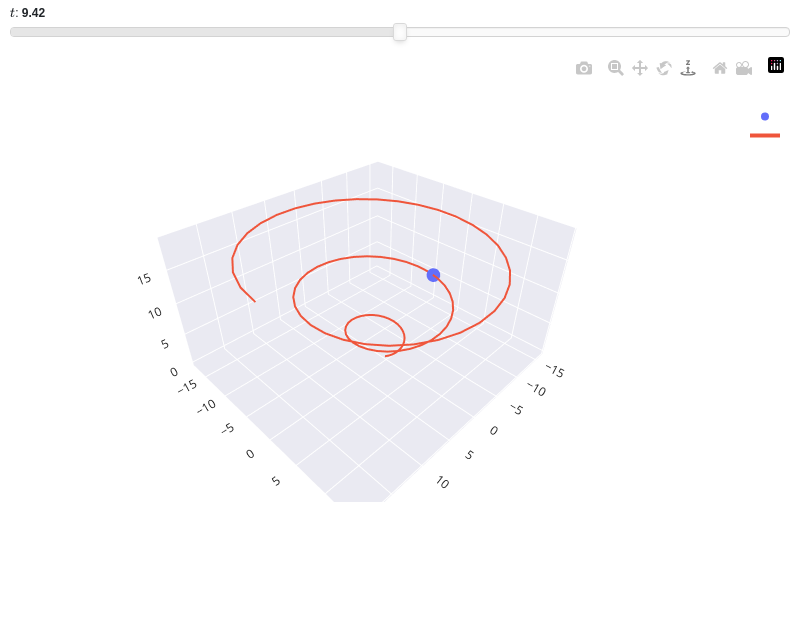

Interactive-widget plot of a dot following a path. Refer to the interactive sub-module documentation to learn more about the params dictionary.

from sympy import *
from spb import *
import numpy as np
t = symbols("t")
z = np.linspace(0, 6*np.pi, 100)
x = z * np.cos(z)
y = z * np.sin(z)
p1 = plot3d_list(x, y, z,
    show=False, scatter=False)
p2 = plot3d_list(
    [t * cos(t)], [t * sin(t)], [t],
    params={t: (3*pi, 0, 6*pi)},
    backend=PB, show=False, scatter=True,
    imodule="panel")
(p2 + p1).show()

(Source code, small.png)

../../_images/functions_3d-39.small.png
